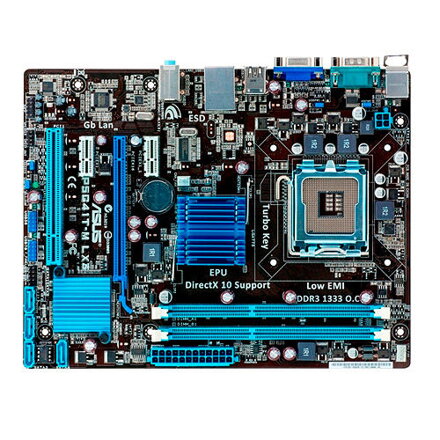

ASUS P5G41T-M LX3

SPECS
GENERAL
Chipset TypeIntel G41 Express / Intel ICH7
Compatible ProcessorsPentium, Celeron, Core 2 Duo, Core 2 Extreme, Core 2 Quad, Celeron 400 sequence
Processor SocketLGA775 Socket
Max Bus Speed1333 MHz
Max Processors Qty1
ManufacturerAsus
EXPANSION / CONNECTIVITY
Expansion Slots1 x CPU
2 x DIMM 240-pin
1 x PCIe x16
2 x PCIe x1
1 x PCI
Storage InterfacesIntel ICH7: SATA-300 -connectors: 4 x 7pin Serial ATA - 4 devices
Internal Interfaces4 x USB 2.0
1 x SPDIF out
1 x audio
Power Connectors4-pin ATX12V connector, 24-pin main power connector
PROCESSOR
Max Supported Qty1
Installed Qty0
INTERFACE PROVIDED
Qty1, 4
TypeLAN (Gigabit Ethernet), PS/2 keyboard, PS/2 mouse, USB 2.0, VGA, audio line-out, audio line-out (center/subwoofer)/microphone, audio line-out (rear)/line-in, serial
Connector Typemini-jack
NETWORKING
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
NetworkGigabit Ethernet
PROCESSOR / MEMORY / STORAGE
Max Supported Qty1
MEMORY
Memory Allocation TechnologyDynamic Video Memory Technology 5.0
Max Allocated RAM Size128 MB
MISCELLANEOUS
Compliant StandardsPlug and Play, ACPI 2.0, ErP Ready
Microsoft CertificationsCompatible with Windows 7
Cables Included2 x Serial ATA cable
Product Typemotherboard
Compatible with Windows 7"Compatible with Windows 7" software and devices carry Microsoft's assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
AUDIO
Audio CodecRealtek ALC887
Compliant StandardsHigh Definition Audio
VIDEO
Video Outputgraphics adapter
Graphics ProcessorIntel GMA X4500
GRAPHICS
Max Allocated RAM Size128 MB
Graphics ControllerIntel GMA X4500
Memory Allocation TechnologyDynamic Video Memory Technology 5.0
AUDIO OUTPUT
Compliant StandardsHigh Definition Audio
Typesound card
Audio CodecRealtek ALC887
AudioHigh Definition Audio (8-channel)
RAM
Max Supported Size8 GB
Featuresdual channel memory architecture
LAN
Network InterfacesGigabit Ethernet
SUPPORTED RAM
Bus Clock1066 MHz
FeaturesDual channel memory architecture
Registered or BufferedUnbuffered
SpeedPC3-8500
TechnologyDDR3
Max Size8 GB
Supported RAM Integrity CheckNon-ECC
HEADER
BrandASUS
Product LineASUS
ModelP5G41T-M LX3
Packaged Quantity1
CompatibilityPC
MAINBOARD
Form Factormicro ATX
Processor SocketLGA775 Socket
Compatible ProcessorsCeleron, Celeron 400 sequence, Core 2 Duo, Core 2 Extreme, Core 2 Quad, Pentium
Data Bus Speed1333 MHz
Chipset TypeIntel G41 Express
I/O ControllerIntel ICH7
Supported RAM TechnologyDDR3 SDRAM
Supported RAM Speed1066 MHz
Supported RAM StandardPC3-8500
Supported RAM Integrity Checknon-ECC
Supported RAM (Registered or Buffered)unbuffered
RAM Slots2 DIMM slots
Power Connectors24-pin main power connector, 4-pin ATX12V connector
MAINBOARD FEATURES
BIOS TypeAMI
BIOS FeaturesACPI 2.0 support, ASUS EZ Flash 2, ASUS MyLogo2, DMI 2.0 support, SMBIOS 2.6 support, WfM 2.0 support
Hardware FeaturesASUS EPU (Energy Processing Unit), ASUS Q-Fan, ASUS Turbo Key, C.P.R. (CPU Parameter Recall), CrashFree BIOS 3, ESD Guards
INTERFACES
StorageSerial ATA-300
Storage Ports4 x SATA-300
USB / FireWire Ports Configuration (Active)4 x USB 2.0
CABLE DETAILS
TypeSerial ATA cable
Included Qty2
EXPANSION SLOTS
Total Qty1, 2
TypeCPU, DIMM 240-pin, PCI, PCIe x1, PCIe x16
DIMENSIONS & WEIGHT
Width9.6 in
Depth7.4 in

+I/O shield krytka
