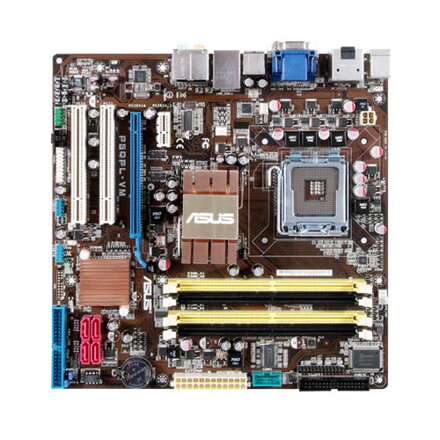

ASUS P5QPL-VM/AM

CPU
Intel® Socket 775 Core™2 Quad/Core™2 Extreme/Core™2 Duo/Pentium® D/Celeron® dual-core Celeron Processors Compatible with Intel® 05B/05A/06 processors
Intel® 45nm Multi-Core CPU support
*Refer to www.asus.com for Intel CPU support list
Chipset
Intel® G41 / ICH7
Front Side Bus
1333/1066/800 MHz
Memory
4 x240-pin DIMM, Max. 8 GB, DDR2 1066(O.C.)/800/667 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
** Refer to www.asus.com or user manual for Memory QVL (Qualify Vendor List)
*** When installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.

• For single-channel confiiguration, you may:
- install one double-sided DIMM in any of the four sockets. OR
- install two single-sided DIMMs in DIMM_A1 and DIMM_A2, or in DIMM_B1 and
DIMM_B2.
• For dual-channel configuration, you may:
- install two double-sided DIMMs. OR
- install four single-sided DIMMs.
• Only DIMM_A1 and DIMM_B1 support 1066MHz memory modules.
Expansion Slots
1 x PCIe x16
1 x PCIe x1
2 x PCI
VGA
Integrated Intel Graphics Media Accelerator (Intel® GMA X4500)
Dual-VGA output support: DisplayPort & RGB, or DVI & RGB
Supports DVI with max. resolution 2048 x 1536@60Hz (support 1080p)
Supports RGB with max. resolution 2048 x 1536@75Hz
Supports DisplayPort with max. resolution 2560 x 1600@60Hz
Maximum shared memory of 1849 MB
Storage
1 xUltraDMA 100
4 xSATA 3 Gb/s ports
LAN
PCIe Gb LAN
Audio
High Definition Audio 8-channel CODEC
Supports Jack-detect and Multi-Streaming teconologies
Supports S/PDIF out interface
USB
8 USB 2.0/1.1 ports (4 ports at mid-board, 4 ports at back panel)
Overclocking Features
SFS (Stepless Frequency Selection) from 200MHz to 400MHz at 1MHz increment
ASUS C.P.R.(CPU Parameter Recall)
Special Features
ASUS MyLogo2
ASUS CrashFreeBIOS3
ASUS EZ Flash2
ASUS Q-Fan
AI NET2
Express Gate
* The actual boot time is subject to hardware configurations and product models.
Back Panel I/O Ports
1 x PS/2 KB
1 x PS/2 Mouse
1 x DVI
1 x DP
1 x VGA
1 x optical S/PDIF output
1 x RJ45
4 x USB 2.0/1.1
8-channel Audio I/O
Internal I/O Connectors
2 x USB 2.0 connectors support additional 4 USB 2.0 ports
1 x IDE connector
1 x Floppy disk drive connector
1 x COM connector
4 x SATA connectors
1 x High Definition front panel audio connector
1 x System Panel connector
1 x CD audio-in connector
1 x S/PDIF output connector
1 x Printer Port
1 x CPU /1 x Chassis Fan connectors/1 x Power Fan Connector
24-pin EATX power connector
4-pin ATX 12V Power connector
BIOS
8 Mb Flash ROM AMI BIOS, PnP, DMI2.0, WfM2.0, ACPI2.0, SMBIOS 2.5

+I/O shield krytka
