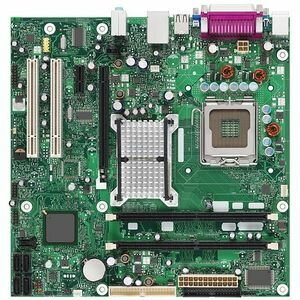

Intel® Desktop Board D946GZIS

Essentials
Product Collection
Legacy Intel® Desktop Boards

Code Name
Products formerly Isleton

Status
Discontinued

Launch Date
Q3'06

Board Form Factor
microATX

Socket
LGA775

Board Chipset
Intel® 82946GZ Graphics and Memory Controller

Intel® vPro™ Platform Eligibility ‡
No

Supplemental Information
Datasheet
View now

Memory & Storage
Max Memory Size (dependent on memory type)
4 GB

Memory Types
DDR2 533/667

Max # of Memory Channels
2

Max # of DIMMs
2

ECC Memory Supported ‡
No

Processor Graphics
Integrated Graphics ‡
Yes

Graphics Output
VGA

Discrete Graphics
PCIe x16

Expansion Options
PCI Support
1

PCIe x1 Gen 2.x
1

PCIe x4 Gen 2.x
1

PCIe x8 Gen 2.x
0

PCIe x16 Gen 2.x
1

I/O Specifications
USB 2.0 Configuration (External + Internal)
4+4

Total # of SATA Ports
4

# of eSATA Ports
0

RAID Configuration
N/A

# of PATA Ports
1

# of Parallel Ports
0

# of Serial Ports
0

Audio (back channel + front channel)
6-ch

Integrated LAN
10/100

Firewire
0+0

+I/O shield krytka
