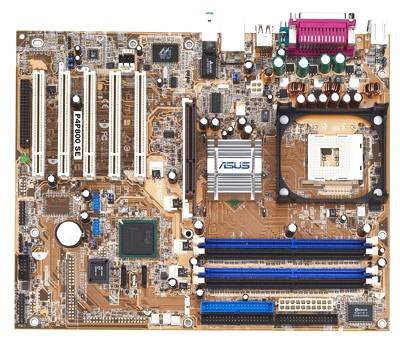

ASUS P4P800 GD Socket 478

SPECS
GENERAL
Chipset TypeIntel 865PE
Compatible ProcessorsCeleron, Pentium 4
Processor SocketSocket 478
Max Bus Speed800 MHz
Max Processors Qty1
ManufacturerAsus
STORAGE CONTROLLER
RAID LevelRAID 0, RAID 1
Interface TypeSerial ATA-150
EXPANSION / CONNECTIVITY
Expansion Slots1 x CPU
4 x DIMM 184-pin
1 x AGP 8x (1.5 V/ 0.8 V)
5 x PCI
Storage InterfacesATA-100 -connectors: 2 x 40pin IDC
SATA-150 -connectors: 2 x 7pin Serial ATA
Internal Interfaces1 x floppy
2 x audio - 4 pin MPC
1 x audio - 4 pin MPC
Additional Connectors (Optional)4 x USB 2.0
PROCESSOR
Max Supported Qty1
Installed Qty0
INTERFACE PROVIDED
Qty1, 4
TypeLAN (Gigabit Ethernet), PS/2 keyboard, PS/2 mouse, SPDIF out, USB 2.0, audio line-out, audio line-out (center/subwoofer)/microphone, audio line-out (rear)/line-in, parallel, serial
Connector Typemini-jack
NETWORKING
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
Network ControllerMarvell Yukon 88E8001
NetworkGigabit Ethernet
PROCESSOR / MEMORY / STORAGE
Max Supported Qty1
MISCELLANEOUS
Product Typemotherboard
AUDIO
Audio CodecAD1985
Compliant StandardsAC '97, SoundMAX 4 XL
VIDEO
Video Outputnone
AUDIO OUTPUT
Sound Output Mode5.1 channel surround
Compliant StandardsAC '97, SoundMAX 4 XL
Signal ProcessorIntel 865PE
Typesound card
Audio CodecAD1985
Audio6-channel
RAM
Max Supported Size4 GB
Featuresdual channel memory architecture
STORAGE CONTROLLER (2ND)
Controller Interface TypeATA-100
LAN
Network InterfacesGigabit Ethernet
Network ControllerMarvell Yukon 88E8001
SUPPORTED RAM
Bus Clock400 MHz, 333 MHz, 266 MHz
FeaturesDual channel memory architecture
SpeedPC3200, PC2700, PC2100
Max Size4 GB
TechnologyDDR
