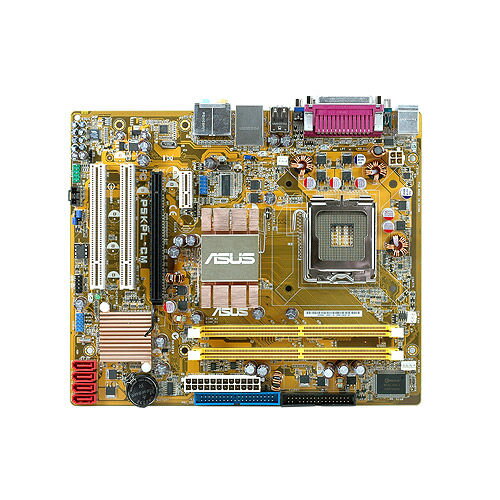

ASUS P5KPL-CM

SPECS
GENERAL
Chipset TypeIntel G31 Express / Intel ICH7
Compatible ProcessorsPentium, Celeron, Pentium 4, Pentium D, Core 2 Duo, Core 2 Extreme, Core 2 Quad, Celeron 400 sequence
Processor SocketLGA775 Socket
Max Bus Speed1333 MHz
Max Processors Qty1
ManufacturerAsus
EXPANSION / CONNECTIVITY
Expansion Slots1 x CPU
2 x DIMM 240-pin
1 x PCIe x16
1 x PCIe x1
2 x PCI
Storage InterfacesIntel ICH7: SATA-300 -connectors: 4 x 7pin Serial ATA - 4 devices
Intel ICH7: ATA-100 -connectors: 1 x 40pin IDC - 2 devices
Internal Interfaces1 x audio - 4 pin MPC
1 x floppy
Additional Connectors (Optional)4 x USB 2.0
Power Connectors4-pin ATX12V connector, 24-pin main power connector
PROCESSOR
Max Supported Qty1
Installed Qty0
INTERFACE PROVIDED
Qty1, 4
TypeLAN (Gigabit Ethernet), PS/2 keyboard, PS/2 mouse, USB 2.0, VGA, audio line-in, audio line-out, audio line-out (center/subwoofer), audio line-out (rear), audio line-out (side surround), microphone, parallel, serial
Connector Typemini-jack
NETWORKING
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
NetworkGigabit Ethernet
PROCESSOR / MEMORY / STORAGE
Max Supported Qty1
MEMORY
Memory Allocation TechnologyDynamic Video Memory Technology 4.0
CACHE MEMORY
Typenone
MISCELLANEOUS
Microsoft CertificationsCertified for Windows Vista
Product Typemotherboard
AUDIO
Audio CodecVIA VT1708B
Compliant StandardsHigh Definition Audio
VIDEO
Video Outputgraphics adapter
Graphics ProcessorIntel GMA 3100
GRAPHICS
Graphics ControllerIntel GMA 3100
Memory Allocation TechnologyDynamic Video Memory Technology 4.0
AUDIO OUTPUT
Sound Output Mode7.1 channel surround
Compliant StandardsHigh Definition Audio
Typesound card
Audio CodecVIA VT1708B
AudioHigh Definition Audio (8-channel)
RAM
Max Supported Size4 GB
Featuresdual channel memory architecture
LAN
Network InterfacesGigabit Ethernet
SUPPORTED RAM
Bus Clock800 MHz, 667 MHz
Registered or BufferedUnbuffered
FeaturesDual channel memory architecture
SpeedPC2-6400, PC2-5300
TechnologyDDR2
Max Size4 GB
Supported RAM Integrity CheckNon-ECC
HEADER
BrandASUS
Product LineASUS
ModelP5KPL-CM
Packaged Quantity1
CompatibilityPC
MAINBOARD
Form Factormicro ATX
Processor SocketLGA775 Socket
Compatible ProcessorsCeleron, Celeron 400 sequence, Core 2 Duo, Core 2 Extreme, Core 2 Quad, Pentium, Pentium 4, Pentium D
Data Bus Speed1333 MHz
Chipset TypeIntel G31 Express
I/O ControllerIntel ICH7
Supported RAM TechnologyDDR2 SDRAM
Supported RAM Speed667 MHz, 800 MHz
Supported RAM StandardPC2-5300, PC2-6400
Supported RAM Integrity Checknon-ECC
Supported RAM (Registered or Buffered)unbuffered
RAM Slots2 DIMM slots
Power Connectors24-pin main power connector, 4-pin ATX12V connector
MAINBOARD FEATURES
BIOS TypeAMI
BIOS FeaturesASUS EZ Flash 2, ASUS MyLogo2, DMI 2.0 support, Hyper-Threading Technology, SMBIOS 2.4 support, WfM 2.0 support
Sleep / Wake Upwake on LAN (WOL), wake on ring (WOR)
Hardware FeaturesASUS Q-Fan, CrashFree BIOS 3, chassis intrusion detection
INTERFACES
StorageATA-100, Serial ATA-300
CABLE DETAILS
TypeIDE cable, Serial ATA cable, floppy cable
Included Qty1
EXPANSION SLOTS
Total Qty1, 2
TypeCPU, DIMM 240-pin, PCI, PCIe x1, PCIe x16
DIMENSIONS & WEIGHT
Width9.6 in
Depth8 in
SOFTWARE
Software IncludedASUS Live Update, ASUS PC Probe 2, drivers & utilities
VIDEO MEMORY
Memory Allocation TechnologyDynamic Video Memory Technology 4.0
STORAGE INTERFACES
ChipIntel ICH7
InterfaceATA-100, Serial ATA-300
Connector(s)1 x 40pin IDC, 4 x 7pin Serial ATA
Supported Devices Qty2, 4
INTERNAL INTERFACES
Typeaudio, floppy
Connector Type4 pin MPC
Qty1
FEATURES
BIOS TypeAMI
Hardware FeaturesChassis intrusion detection, ASUS Q-Fan, CrashFree BIOS 3
BIOS FeaturesDMI 2.0 support, WfM 2.0 support, ASUS MyLogo2, Hyper-Threading Technology, ASUS EZ Flash 2, SMBIOS 2.4 support
Sleep / Wake UpWake on LAN (WOL), wake on ring (WOR)

+I/O shield krytka
