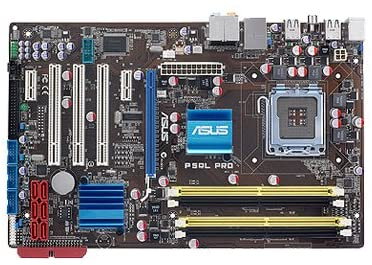

ASUS P5QL PRO

SPECS
GENERAL
OverclockingThis motherboard features advanced manual options that aid in overclocking and performance-tuning efforts.
Chipset TypeIntel P43 Express / Intel ICH10
Compatible ProcessorsPentium 4, Pentium 4 Extreme Edition, Pentium D, Core 2 Duo, Core 2 Extreme, Core 2 Quad, Pentium Dual Core, Celeron 400 sequence, Celeron Dual Core
Processor SocketLGA775 Socket
Max Bus Speed1333 MHz
Max Processors Qty1
ManufacturerAsus
EXPANSION / CONNECTIVITY
Expansion Slots1 x CPU
4 x DIMM 240-pin
1 x PCIe 2.0 x16
2 x PCIe x1
3 x PCI
Storage InterfacesIntel ICH10: SATA-300 -connectors: 6 x 7pin Serial ATA - 6 devices
ATA-133 -connectors: 1 x 40pin IDC - 2 devices
Internal Interfaces1 x floppy
Power Connectors4-pin ATX12V connector, 24-pin main power connector
PROCESSOR
Max Supported Qty1
Installed Qty0
INTERFACE PROVIDED
Qty1, 6
TypeLAN (Gigabit Ethernet), PS/2 keyboard, PS/2 mouse, SPDIF out, USB 2.0, audio line-in, audio line-out, audio line-out (center/subwoofer), audio line-out (rear), audio line-out (side surround), microphone
Connector Typemini-jack
NETWORKING
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
NetworkGigabit Ethernet
PROCESSOR / MEMORY / STORAGE
Max Supported Qty1
MISCELLANEOUS
Microsoft CertificationsCertified for Windows Vista
Product Typemotherboard
AUDIO
Audio CodecRealtek ALC1200
Compliant StandardsHigh Definition Audio
VIDEO
Video Outputnone
AUDIO OUTPUT
Sound Output Mode7.1 channel surround
Compliant StandardsHigh Definition Audio
Typesound card
Audio CodecRealtek ALC1200
AudioHigh Definition Audio (8-channel)
RAM
Max Supported Size16 GB
Featuresdual channel memory architecture
LAN
Network InterfacesGigabit Ethernet
SUPPORTED RAM
Bus Clock1066 MHz, 800 MHz, 667 MHz
Registered or BufferedUnbuffered
FeaturesDual channel memory architecture
SpeedPC2-8500, PC2-6400, PC2-5300
TechnologyDDR2
Max Size16 GB
Supported RAM Integrity CheckNon-ECC
HEADER
BrandASUS
Product LineASUS
ModelP5QL PRO
Packaged Quantity1
CompatibilityPC
MAINBOARD
Form FactorATX
Processor SocketLGA775 Socket
Compatible ProcessorsCeleron 400 sequence, Celeron Dual Core, Core 2 Duo, Core 2 Extreme, Core 2 Quad, Pentium 4, Pentium 4 Extreme Edition, Pentium D, Pentium Dual Core
Data Bus Speed1333 MHz
Chipset TypeIntel P43 Express
I/O ControllerIntel ICH10
Supported RAM TechnologyDDR2 SDRAM
Supported RAM Speed1066 MHz, 667 MHz, 800 MHz
Supported RAM StandardPC2-5300, PC2-6400, PC2-8500
Supported RAM Integrity Checknon-ECC
Supported RAM (Registered or Buffered)unbuffered
RAM Slots4 DIMM slots
Power Connectors24-pin main power connector, 4-pin ATX12V connector
MAINBOARD FEATURES
BIOS TypeAMI
BIOS FeaturesACPI 2.0a support, ASUS EZ Flash 2, ASUS MyLogo2, ASUS O.C. Profile, DMI 2.0 support, SMBIOS 2.3 support, WfM 2.0 support
Sleep / Wake Upwake on LAN (WOL), wake on ring (WOR)
Manual Settingschipset voltage, memory voltage, processor core voltage
Hardware FeaturesASUS AI NET2, ASUS AI Nap, ASUS EPU-4 Engine, ASUS Express Gate, ASUS Fan Xpert, ASUS Noise Filter, ASUS Precision Tweaker, ASUS Q-Connector, ASUS Stepless Frequency Selection (SFS), C.P.R. (CPU Parameter Recall), CrashFree BIOS 3
INTERFACES
StorageATA-133, Serial ATA-300
EXPANSION SLOTS
Total Qty1, 2, 3, 4
TypeCPU, DIMM 240-pin, PCI, PCIe 2.0 x16, PCIe x1
DIMENSIONS & WEIGHT
Width12 in
Depth7.6 in
SOFTWARE
Software IncludedASUS AI Booster, ASUS AI Suite, ASUS Live Update, ASUS PC Probe 2, drivers & utilities
SERVICE & SUPPORT
Type3 years warranty
STORAGE INTERFACES
ChipIntel ICH10
InterfaceATA-133, Serial ATA-300
Connector(s)1 x 40pin IDC, 6 x 7pin Serial ATA
Supported Devices Qty2, 6
SERVICE & SUPPORT DETAILS
Typelimited warranty
Full Contract Period3 years
INTERNAL INTERFACES
Typefloppy
Qty1
FEATURES
Manual SettingsProcessor core voltage, memory voltage, chipset voltage
BIOS TypeAMI
Hardware FeaturesC.P.R. (CPU Parameter Recall), ASUS AI Nap, CrashFree BIOS 3, ASUS Q-Connector, ASUS AI NET2, ASUS Noise Filter, ASUS Stepless Frequency Selection (SFS), ASUS Express Gate, ASUS Fan Xpert, ASUS Precision Tweaker, ASUS EPU-4 Engine
BIOS FeaturesDMI 2.0 support, WfM 2.0 support, ASUS MyLogo2, SMBIOS 2.3 support, ASUS EZ Flash 2, ASUS O.C. Profile, ACPI 2.0a support
Sleep / Wake UpWake on LAN (WOL), wake on ring (WOR)GENERAL
ManufacturerAsus
