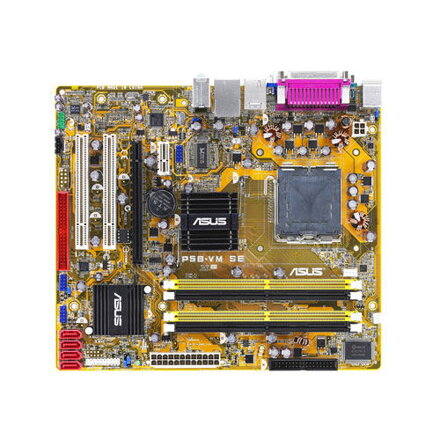

ASUS P5B-VM SE

CPU
Intel Socket 775 Core™2 Extreme/Core™2 Duo/Pentium® Extreme/Pentium® D/Pentium® 4/Celeron Processors
ntel® Quad-Core CPU ready
Intel® EIST/Hyper-Threading Technology ready
* Refer to www.asus.com for Intel CPU support list
Chipset
Intel G965
ICH8

Front Side Bus
1066/800/533 MHz
Memory
4 x240-pin DIMM, Max. 8 GB, DDR2 800/667/533 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
*Refer to www.asus.com or user manual for Memory QVL (Qualify Vendor List)
**When installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Expansion Slots
1 x PCIe x16
1 x PCIe x1
2 x PCI 2.2
VGA
Integrated Intel® Graphics Media Accelerator X3000 (Intel® GMA X3000)
High Definition Video Processing with max. resolutions to Max. resolution to 2048 x 1536 bpp(@ 75Hz)
Max. shared memory of 256MB
Support Microsoft® DX 9, OpenGL 1.5, Pixel Shader 3.0
Storage
Southbridge
4 xSATA 3 Gb/s ports
JMicron® JMB368 PATA controller
1 xUltraDMA 133/100/66/33 for 2 PATA devices
LAN
Gigabit LAN Controller
Audio
Realtek ALC883 6 -Channel High Definition Audio CODEC
Coaxial / Optical S/PDIF out ports onboard
Support Jack-Sensing, Enumeration, Multi-streaming and Jack-Retasking
USB
10 USB 2.0 ports (6 ports at mid-board, 4 ports at back panel)
Other Features
SFS (Stepless Frequency Selection): from 133MHz up to 400MHz at 1MHz increment
ASUS Q-Fan
ASUS MyLogo 2
ASUS EZ Flash 2
ASUS CrashFree BIOS 3
ASUS C.P.R.(CPU Parameter Recall)
Back Panel I/O Ports
1 x Parallel
1 x VGA
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x LAN(RJ45) port
4 x USB 2.0/1.1
1 x COM port
6 -Channel Audio I/O
Internal I/O Connectors
3 x USB connectors support additional 6 USB ports
1 x Floppy disk drive connector
1 x IDE connector
4 x SATA connectors
1 x CPU Fan connector
1 x Chassis Fan connector
1 x S/PDIF Out connector
1 x4-pin ATX 12V Power connector
24 Power connector
Front panel audio connector
Chassis Intrusion connector
CD/AUX audio in
System Panel
BIOS
8 Mb Flash ROM
DMI 2.0
AMI BIOS
PnP
WfM 2.0
SM BIOS 2.4
ACPI 2.0a
ASUS EZ Flash 2
ASUS CrashFree BIOS 3
Manageability
WfM 2.0,DMI 2.0,WOL by PME,PXE
Accessories
User's manual
1 x I/O Shield
1 x UltraDMA 133/100/66 cable
1 x Floppy disk drive cable
1 x SATA cable
1 SATA power cable
Form Factor
uATX Form Factor
9.6 inch x 8.4 inch ( 24.4 cm x 21.3 cm )

+I/O shield krytka
