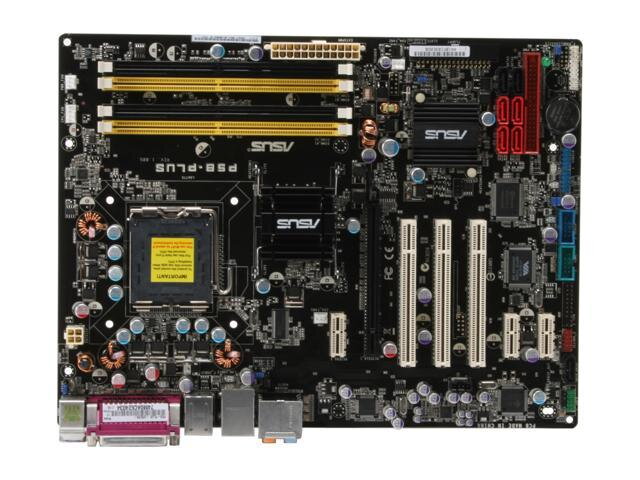

ASUS P5B-PLUS Vista edition

SPECS
GENERAL
OverclockingThis board has advanced manual options that aid in overclocking and performance-tuning efforts.
Chipset TypeIntel P965 Express / Intel ICH8R
Compatible ProcessorsPentium 4, Celeron D, Pentium Extreme Edition, Pentium D, Core 2 Duo, Core 2 Extreme, Core 2 Quad
Processor SocketLGA775 Socket
Max Bus Speed1066 MHz
Max Processors Qty1
ManufacturerAsus
EXPANSION / CONNECTIVITY
Expansion Slots1 x CPU
4 x DIMM 240-pin
1 x PCIe x16
3 x PCIe x1
3 x PCI
Storage InterfacesIntel ICH8R: SATA-300 -connectors: 6 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5
JMicron JMB363: ATA-133 -connectors: 1 x 40pin IDC - 2 devices
JMicron JMB363: SATA-300 -connectors: 1 x 7pin Serial ATA, 1 x 7pin external SATA - 1 devices - RAID 0 / RAID 1 / JBOD
Internal Interfaces1 x audio - 4 pin MPC
1 x floppy
Additional Connectors (Optional)1 x IEEE 1394 (FireWire), 6 x USB 2.0
Power Connectors4-pin ATX12V connector, 24-pin main power connector
RAID FeaturesIntel Matrix RAID Technology
PROCESSOR
Max Supported Qty1
Installed Qty0
INTERFACE PROVIDED
Typeserial, storage
InterfaceIEEE 1284 (EPP/ECP), eSATA-300
Qty1, 4
Connector Type25 pin D-Sub (DB-25), 7 pin external Serial ATA
TypeFireWire, LAN (Gigabit Ethernet), PS/2 keyboard, PS/2 mouse, SPDIF out, TOSLINK, USB 2.0, audio line-in, audio line-out, audio line-out (center/subwoofer), audio line-out (rear), audio line-out (side surround), microphone
Connector Type6 pin FireWire, mini-jack
NETWORKING
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
NetworkGigabit Ethernet
PROCESSOR / MEMORY / STORAGE
Max Supported Qty1
CACHE MEMORY
Typenone
MISCELLANEOUS
Microsoft CertificationsCertified for Windows Vista
Product Typemotherboard
AUDIO
Audio CodecAD1988
Compliant StandardsHigh Definition Audio
VIDEO
Video Outputnone
AUDIO OUTPUT
Sound Output Mode7.1 channel surround
Compliant StandardsHigh Definition Audio
Typesound card
Audio CodecAD1988
AudioHigh Definition Audio (8-channel)
RAM
Max Supported Size8 GB
Featuresdual channel memory architecture
LAN
Network InterfacesGigabit Ethernet
SUPPORTED RAM
Bus Clock800 MHz, 667 MHz, 533 MHz
Registered or BufferedUnbuffered
FeaturesDual channel memory architecture
SpeedPC2-6400, PC2-5300, PC2-4300
Max Size8 GB
TechnologyDDR2
Supported RAM Integrity CheckNon-ECC
HEADER
BrandASUS
Product LineASUS
ModelP5B-Plus AiLifestyle Series
Packaged Quantity1
CompatibilityPC
MAINBOARD
Form FactorATX
Processor SocketLGA775 Socket
Compatible ProcessorsCeleron D, Core 2 Duo, Core 2 Extreme, Core 2 Quad, Pentium 4, Pentium D, Pentium Extreme Edition
Data Bus Speed1066 MHz
Chipset TypeIntel P965 Express
I/O ControllerIntel ICH8R
Supported RAM TechnologyDDR2 SDRAM
Supported RAM Speed533 MHz, 667 MHz, 800 MHz
Supported RAM StandardPC2-4300, PC2-5300, PC2-6400
Supported RAM Integrity Checknon-ECC
Supported RAM (Registered or Buffered)unbuffered
Power Connectors24-pin main power connector, 4-pin ATX12V connector
MAINBOARD FEATURES
BIOS TypeAMI
BIOS FeaturesACPI 2.0 support, ASUS EZ Flash 2, ASUS MyLogo2, ASUS O.C. Profile, DMI 2.0 support, Hyper-Threading Technology, SMBIOS 2.3 support, WfM 2.0 support
Manual SettingsCPU frequency, PCI Express x16 slot frequency, chipset voltage, memory bus frequency, memory voltage, processor core voltage
Hardware FeaturesASUS AI Gear, ASUS AI NOS (Non-delay Overclocking System), ASUS AI Nap, ASUS AI Remote, ASUS AP Trigger, ASUS Accelerated Propeller (ASAP), ASUS Q-Connector, ASUS Q-Fan 2, ASUS SATA on the Go, ASUS ScreenDUO, ATI CrossFire technology support, C.P.R. (CPU Parameter Recall), CrashFree BIOS 3, Stack Cool 2, Trusted Platform Module (TPM), chassis intrusion detection, heat pipe chipset cooling
INTERFACES
StorageATA-133, Serial ATA-300 (RAID), eSATA port
RAID FeaturesIntel Matrix RAID Technology
USB 3.0 / FireWireFireWire
EXPANSION SLOTS
Total Qty1, 3, 4
TypeCPU, DIMM 240-pin, PCI, PCIe x1, PCIe x16
DIMENSIONS & WEIGHT
Width12 in
Depth9 in
SOFTWARE
Software Includeddrivers & utilities
STORAGE INTERFACES
ChipIntel ICH8R, JMicron JMB363
InterfaceATA-133, Serial ATA-300
Connector(s)1 x 40pin IDC, 1 x 7pin Serial ATA, 1 x 7pin external SATA, 6 x 7pin Serial ATA
Supported Devices Qty1, 2, 6
RAID (Level)RAID 0 / RAID 1 / JBOD
INTERNAL INTERFACES
Typeaudio, floppy
Connector Type4 pin MPC
Qty1
FEATURES
Manual SettingsCPU frequency, processor core voltage, memory voltage, memory bus frequency, PCI Express x16 slot frequency, chipset voltage
BIOS TypeAMI
BIOS FeaturesDMI 2.0 support, WfM 2.0 support, ASUS MyLogo2, ACPI 2.0 support, SMBIOS 2.3 support, Hyper-Threading Technology, ASUS EZ Flash 2, ASUS O.C. Profile
Hardware FeaturesChassis intrusion detection, C.P.R. (CPU Parameter Recall), ASUS Q-Fan 2, ASUS AI NOS (Non-delay Overclocking System), Stack Cool 2, ASUS SATA on the Go, heat pipe chipset cooling, Trusted Platform Module (TPM), ATI CrossFire technology support, ASUS AI Gear, ASUS AI Nap, CrashFree BIOS 3, ASUS Q-Connector, ASUS AI Remote, ASUS AP Trigger, ASUS Accelerated Propeller (ASAP), ASUS ScreenDUO
