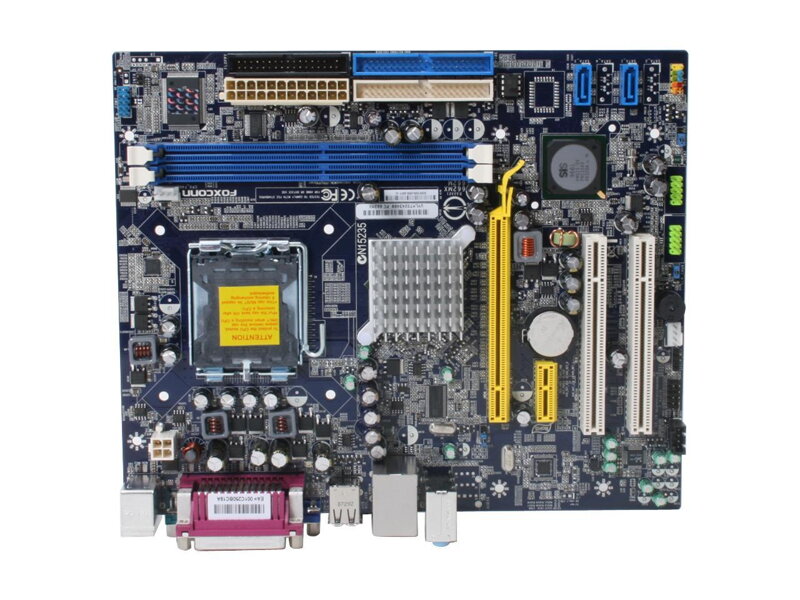

Foxconn 662MX

SPECS
GENERAL
Chipset TypeSiS662 / SiS966L
Compatible ProcessorsPentium 4, Celeron D, Pentium D, Core 2 Duo
Processor SocketLGA775 Socket
Max Bus Speed1066 MHz
Max Processors Qty1
ManufacturerFoxconn
EXPANSION / CONNECTIVITY
Expansion Slots1 x CPU
2 x DIMM 240-pin
1 x PCIe x16
1 x PCIe x1
2 x PCI
Storage InterfacesATA-133 -connectors: 2 x 40pin IDC - 4 devices
SATA-300 -connectors: 2 x 7pin Serial ATA - 2 devices - RAID 0 / RAID 1
Internal Interfaces1 x audio - 4 pin MPC
Additional Connectors (Optional)4 x USB 2.0
PROCESSOR
Max Supported Qty1
Installed Qty0
INTERFACE PROVIDED
Qty1, 4
TypeLAN, PS/2 keyboard, PS/2 mouse, USB 2.0, VGA, audio line-out, audio line-out (center/subwoofer)/microphone, audio line-out (rear)/line-in, parallel, serial
Connector Typemini-jack
NETWORKING
Data Link ProtocolEthernet, Fast Ethernet
NetworkEthernet
PROCESSOR / MEMORY / STORAGE
Max Supported Qty1
CACHE MEMORY
Typenone
MISCELLANEOUS
Product Typemotherboard
AUDIO
Compliant StandardsHigh Definition Audio
VIDEO
Video Outputgraphics adapter
AUDIO OUTPUT
Sound Output Mode5.1 channel surround
Compliant StandardsHigh Definition Audio
Typesound card
AudioHigh Definition Audio (6-channel)
RAM
Max Supported Size2 GB
LAN
Network InterfacesEthernet
SUPPORTED RAM
Bus Clock667 MHz, 533 MHz, 400 MHz
SpeedPC2-5300, PC2-4300, PC2-3200
TechnologyDDR2
Max Size2 GB
HEADER
BrandFoxconn
Product LineFoxconn
Model662MX
Packaged Quantity1
CompatibilityPC
MAINBOARD
Form Factormicro ATX
Processor SocketLGA775 Socket
Compatible ProcessorsCeleron D, Core 2 Duo, Pentium 4, Pentium D
Data Bus Speed1066 MHz
Chipset TypeSiS662
I/O ControllerSiS966L
Supported RAM TechnologyDDR2 SDRAM
Supported RAM Speed400 MHz, 533 MHz, 667 MHz
Supported RAM StandardPC2-3200, PC2-4300, PC2-5300
MAINBOARD FEATURES
BIOS FeaturesACPI support, DMI 2.0 support, WfM 2.0 support
Hardware Featureschassis intrusion detection
INTERFACES
StorageATA-133, Serial ATA-150 (RAID)
EXPANSION SLOTS
Total Qty1, 2
TypeCPU, DIMM 240-pin, PCI, PCIe x1, PCIe x16
DIMENSIONS & WEIGHT
Width9.6 in
Depth7.9 in
SOFTWARE
Software IncludedAdobe Acrobat Reader, Corel Wordperfect, Foxconn SuperUtilities, Norton Internet Security, drivers & utilities
STORAGE INTERFACES
InterfaceATA-133, Serial ATA-300
Connector(s)2 x 40pin IDC, 2 x 7pin Serial ATA
Supported Devices Qty2, 4
RAID (Level)RAID 0 / RAID 1
INTERNAL INTERFACES
Typeaudio
Connector Type4 pin MPC
Qty1
FEATURES
Hardware FeaturesChassis intrusion detection
BIOS FeaturesACPI support, DMI 2.0 support, WfM 2.0 support

+I/O shield krytka
