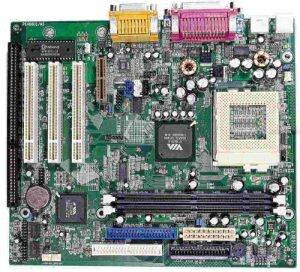

QDI Advance 6A P6V8601A/A6A

DETAIL
Chipset
VIA Apollo Ple-133
North Bridge: VIA VT8601A
South Bridge: VIA 686A
Bus Type 1 AMR
3 PCI
1 ISA
CPU Support Socket 370 processors
Intel Pentium III FC-PGA processors at 500E/533EB/550E/600E/600EB/650/667/700/
733/750/800EB/800/850/866/933/1000MHz and future
Support Intel Celeron CPU at 300A/333/366/400/433/466/500/500A/
533/533A/566/600/633/667/700/733/800MHz and future
VIA Cyrix-III processors at 500/533/550/600/667/700/750MHz
System Memory Two 168 pin 3.3v DIMM sockets
Support up to 1GB SDRAM memory
Power Management ACPI V1.0 and APM compliant
Support S0, S1, S5 ACPI power status
USB 4 USB ports ( 2 for I/O panel and 2 for front panel)
USB 1.1 specification compliant
Bus Speed 66/100/133MHz FSB
BIOS 2 Mbit Flash ROM
Licensed advanced AWARD BIOS
Supports Plug and Play
Supports ACPI and OS directed power management
Storage system Two PCI Master IDE ports support up to 4 IDE devices
Supports ATA 66
One Floppy port supports up to two 3.5" or 5.25" floppy drives
(360K/720K/1.2M/1.44M/2.88M)
Supports LS-120 floppy disk drive and ZIP drive
I/O Feature 2 high speed Serial Ports (16550 Fast UART Compatible)
1 Enhanced Parallel Port supports EPP/ECP/SPP mode
1 PS/2 keyboard port and 1 PS/2 mouse port
1 Speaker + 1 Line in + 1 Mic jack
1 Gameport/MIDI
1 15pin VGA connector
IrDA port supports up to 115.2Kb/s transfer rate
All I/O ports can be enabled/disabled by BIOS setup
Graphics Integrate Trident 3D graphics engine in chipset
Share memory architecture(4/8MB)
System Health Monitoring CPU temperature, System temperature, CPU fan speed,
Chassis fan speed, 5 System Voltages
Onboard Audio Onboard AC' 97 2.1 audio codec
16-bit Stereo Codec
Advanced Feature Wake up on LAN
Wake up on Modem
Trend ChipAway Virus on Guard
AC power resume
QDI Innovatios RecoveryEasy, LogoEasy,
BIOS-ProtectEasy, ManageEasy, BootEasy
Form Factor MATX: 244X210mm

+I/O shield krytka
