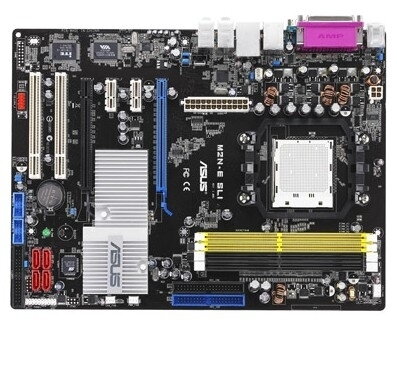

ASUS M2N-E SLI

SPECS
GENERAL
OverclockingThis motherboard has detailed manual setup options that aid in overclocking and performance-tuning efforts.
Packaged Quantity1
Chipset TypeNVIDIA nForce 500 SLI
Compatible ProcessorsAthlon 64, Sempron, Athlon 64 FX, Athlon 64 X2
Processor SocketSocket AM2
Max Bus Speed1000 MHz
Max Processors Qty1
ManufacturerAsus
PROCESSOR / CHIPSET
Data Bus Speed1000 MHz
Chipset TypeNVIDIA nForce 500 SLI
Processor SocketSocket AM2
EXPANSION / CONNECTIVITY
Expansion Slots1 x CPU
4 x DIMM 240-pin
2 x PCI Express x16 (SLI: x8, x8 mode; single card: x16, x1 mode)
2 x PCIe x1
2 x PCI
Storage InterfacesATA-133 -connectors: 2 x 40pin IDC - 4 devices
SATA-300 -connectors: 4 x 7pin Serial ATA - 4 devices - RAID 0 / RAID 1 / RAID 0+1 / RAID 5 / JBOD
Internal Interfaces1 x audio - 4 pin MPC
1 x floppy
Additional Connectors (Optional)1 x IEEE 1394 (FireWire), 4 x USB 2.0
Power Connectors4-pin ATX12V connector, 24-pin main power connector
PROCESSOR
Max Supported Qty1
Installed Qty0
INTERFACE PROVIDED
Typeaudio
Qty1, 4, 6
Connector Typemini-phone 3.5 mm
TypeFireWire, LAN (Gigabit Ethernet), PS/2 keyboard, PS/2 mouse, SPDIF out, USB 2.0, parallel, serial
Connector Type6 pin FireWire
NETWORKING
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
NetworkGigabit Ethernet
PROCESSOR / MEMORY / STORAGE
Max Supported Qty1
AUDIO
Compliant StandardsAC '97
CACHE MEMORY
Typenone
MISCELLANEOUS
Microsoft CertificationsCertified for Windows Vista
CompatibilityAMD LIVE! Ready
Product Typemotherboard
VIDEO
Video Outputnone
RAM
Featuresdual channel memory architecture
Max Supported Size8 GB
AUDIO OUTPUT
Sound Output Mode7.1 channel surround
Compliant StandardsAC '97
Typesound card
Audio8-channel
MANUFACTURER WARRANTY
Type3 years warranty
LAN
Network InterfacesGigabit Ethernet
SUPPORTED RAM
Bus Clock800 MHz, 667 MHz, 533 MHz
FeaturesDual channel memory architecture
Registered or BufferedUnbuffered
SpeedPC2-6400, PC2-5300, PC2-4300
Max Size8 GB
TechnologyDDR2
Supported RAM Integrity CheckNon-ECC, ECC
HEADER
BrandASUS
Product LineASUS
ModelM2N-E SLI
Packaged Quantity1
CompatibilityPC
SOFTWARE
Software IncludedASUS Live Update, ASUS PC Probe 2, drivers & utilities
MAINBOARD
Form FactorATX
Processor SocketSocket AM2
Compatible ProcessorsAthlon 64, Athlon 64 FX, Athlon 64 X2, Sempron
Data Bus Speed1000 MHz
Chipset TypeNVIDIA nForce 500 SLI
Supported RAM TechnologyDDR2 SDRAM
Supported RAM Speed533 MHz, 667 MHz, 800 MHz
Supported RAM StandardPC2-4300, PC2-5300, PC2-6400
Supported RAM Integrity CheckECC, non-ECC
Supported RAM (Registered or Buffered)unbuffered
Power Connectors24-pin main power connector, 4-pin ATX12V connector
DIMENSIONS & WEIGHT
Width12 in
Depth8.6 in
MAINBOARD FEATURES
BIOS TypeAward
BIOS FeaturesASUS EZ Flash 2, DMI 2.0 support, SMBIOS 2.3 support, WfM 2.0 support
Sleep / Wake Upwake on LAN (WOL), wake on ring (WOR)
Manual SettingsCPU frequency, FSB ratio (CPU:memory)
Hardware FeaturesAMD Cool 'n' Quiet Technology, ASUS Q-Fan 2, C.P.R. (CPU Parameter Recall), CrashFree BIOS 3, NVIDIA SLI Technology Support, chassis intrusion detection, heat pipe chipset cooling
INTERFACES
StorageATA-133, Serial ATA-300 (RAID)
USB 3.0 / FireWireFireWire
CABLE DETAILS
TypeIDE cable, SLI bridge, Serial ATA cable, Serial ATA power adapter, floppy cable
Included Qty1, 2
EXPANSION SLOTS
Total Qty1, 2, 4
Slot CommentsSLI: x8, x8 mode; single card: x16, x1 mode
TypeCPU, DIMM 240-pin, PCI, PCIe x1
STORAGE INTERFACES
InterfaceATA-133, Serial ATA-300
Connector(s)2 x 40pin IDC, 4 x 7pin Serial ATA
Supported Devices Qty4
RAID (Level)RAID 0 / RAID 1 / RAID 0+1 / RAID 5 / JBOD
SERVICE & SUPPORT
Type3 years warranty
SERVICE & SUPPORT DETAILS
Typelimited warranty
Full Contract Period3 years
INTERNAL INTERFACES
Typeaudio, floppy
Connector Type4 pin MPC
Qty1
FEATURES
Manual SettingsCPU frequency, FSB ratio (CPU:memory)
BIOS TypeAward
Hardware FeaturesChassis intrusion detection, C.P.R. (CPU Parameter Recall), AMD Cool 'n' Quiet Technology, ASUS Q-Fan 2, heat pipe chipset cooling, NVIDIA SLI Technology Support, CrashFree BIOS 3
BIOS FeaturesDMI 2.0 support, WfM 2.0 support, SMBIOS 2.3 support, ASUS EZ Flash 2
Sleep / Wake UpWake on LAN (WOL), wake on ring (WOR)

+I/O shield krytka
