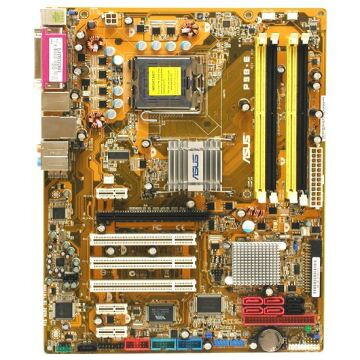

ASUS P5B-E

SPECS
GENERAL
Packaged Quantity1
Chipset TypeIntel P965 Express / Intel ICH8R
Compatible ProcessorsPentium 4, Celeron D, Pentium Extreme Edition, Pentium D, Core 2 Duo, Core 2 Extreme
Processor SocketLGA775 Socket
Max Bus Speed1066 MHz
Max Processors Qty1
ManufacturerAsus
PROCESSOR / CHIPSET
Data Bus Speed1066 MHz
Chipset TypeIntel P965 Express
Processor SocketLGA775 Socket
EXPANSION / CONNECTIVITY
Expansion Slots1 x CPU
4 x DIMM 240-pin
1 x PCIe x16
3 x PCIe x1
3 x PCI
Storage InterfacesIntel ICH8R: SATA-300 -connectors: 6 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5
JMicron JMB363: ATA-133 -connectors: 1 x 40pin IDC - 2 devices
JMicron JMB363: SATA-300 -connectors: 1 x 7pin Serial ATA, 1 x 7pin external SATA - 1 devices - RAID 0 / RAID 1 / JBOD
Internal Interfaces1 x audio - 4 pin MPC
1 x floppy
Additional Connectors (Optional)1 x IEEE 1394 (FireWire), 6 x USB 2.0
Power Connectors4-pin ATX12V connector, 24-pin main power connector
PROCESSOR
Max Supported Qty1
Installed Qty0
INTERFACE PROVIDED
Typestorage
InterfaceeSATA
Qty1, 4
Connector Type7 pin external Serial ATA
TypeFireWire, LAN (Gigabit Ethernet), PS/2 keyboard, PS/2 mouse, SPDIF out, TOSLINK, USB 2.0, audio line-in, audio line-out, audio line-out (center/subwoofer), audio line-out (rear), audio line-out (side surround), microphone, parallel
Connector Type6 pin FireWire, mini-jack
NETWORKING
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
NetworkGigabit Ethernet
PROCESSOR / MEMORY / STORAGE
Max Supported Qty1
AUDIO
Compliant StandardsHigh Definition Audio
CACHE MEMORY
Typenone
MISCELLANEOUS
Microsoft CertificationsCertified for Windows Vista
Product Typemotherboard
VIDEO
Video Outputnone
RAM
Featuresdual channel memory architecture
Max Supported Size8 GB
AUDIO OUTPUT
Sound Output Mode7.1 channel surround
Compliant StandardsHigh Definition Audio
Typesound card
AudioHigh Definition Audio (8-channel)
MANUFACTURER WARRANTY
Type3 years warranty
LAN
Network InterfacesGigabit Ethernet
SUPPORTED RAM
Bus Clock800 MHz, 667 MHz, 533 MHz
FeaturesDual channel memory architecture
Registered or BufferedUnbuffered
SpeedPC2-6400, PC2-5300, PC2-4300
TechnologyDDR2
Max Size8 GB
Supported RAM Integrity CheckNon-ECC
HEADER
BrandASUS
Product LineASUS
ModelP5B-E AiLifestyle Series
Packaged Quantity1
CompatibilityPC
MAINBOARD
Form FactorATX
Processor SocketLGA775 Socket
Compatible ProcessorsCeleron D, Core 2 Duo, Core 2 Extreme, Pentium 4, Pentium D, Pentium Extreme Edition
Data Bus Speed1066 MHz
Chipset TypeIntel P965 Express
I/O ControllerIntel ICH8R
Supported RAM TechnologyDDR2 SDRAM
Supported RAM Speed533 MHz, 667 MHz, 800 MHz
Supported RAM StandardPC2-4300, PC2-5300, PC2-6400
Supported RAM Integrity Checknon-ECC
Supported RAM (Registered or Buffered)unbuffered
Power Connectors24-pin main power connector, 4-pin ATX12V connector
DIMENSIONS & WEIGHT
Width12 in
Depth9.6 in
MAINBOARD FEATURES
BIOS TypeAMI
BIOS FeaturesACPI 2.0 support, ASUS EZ Flash 2, ASUS MyLogo2, ASUS O.C. Profile, DMI 2.0 support, Hyper-Threading Technology, SMBIOS 2.3 support, WfM 2.0 support
Manual SettingsCPU frequency, PCI Express x16 slot frequency, memory bus frequency, memory voltage, processor core voltage
Hardware FeaturesASUS AI Gear, ASUS AI NOS (Non-delay Overclocking System), ASUS AI Nap, ASUS Q-Fan 2, ASUS SATA on the Go, C.P.R. (CPU Parameter Recall), CrashFree BIOS 3, Green Edition, chassis intrusion detection
INTERFACES
StorageATA-133, Serial ATA-300 (RAID), eSATA port
USB 3.0 / FireWireFireWire
CABLE DETAILS
TypeUSB panel
Included Qty1
EXPANSION SLOTS
Total Qty1, 3, 4
TypeCPU, DIMM 240-pin, PCI, PCIe x1, PCIe x16
STORAGE INTERFACES
ChipIntel ICH8R, JMicron JMB363
InterfaceATA-133, Serial ATA-300
Connector(s)1 x 40pin IDC, 1 x 7pin Serial ATA, 1 x 7pin external SATA, 6 x 7pin Serial ATA
Supported Devices Qty1, 2, 6
RAID (Level)RAID 0 / RAID 1 / JBOD
SERVICE & SUPPORT
Type3 years warranty
SERVICE & SUPPORT DETAILS
Typelimited warranty
Full Contract Period3 years
INTERNAL INTERFACES
Typeaudio, floppy
Connector Type4 pin MPC
Qty1
FEATURES
Manual SettingsCPU frequency, processor core voltage, memory voltage, memory bus frequency, PCI Express x16 slot frequency
BIOS TypeAMI
Hardware FeaturesChassis intrusion detection, C.P.R. (CPU Parameter Recall), ASUS Q-Fan 2, Green Edition, ASUS AI NOS (Non-delay Overclocking System), ASUS SATA on the Go, ASUS AI Gear, ASUS AI Nap, CrashFree BIOS 3
BIOS FeaturesDMI 2.0 support, WfM 2.0 support, ASUS MyLogo2, ACPI 2.0 support, SMBIOS 2.3 support, Hyper-Threading Technology, ASUS EZ Flash 2, ASUS O.C. ProfileGENERAL
ManufacturerAsus

+I/O shield krytka
