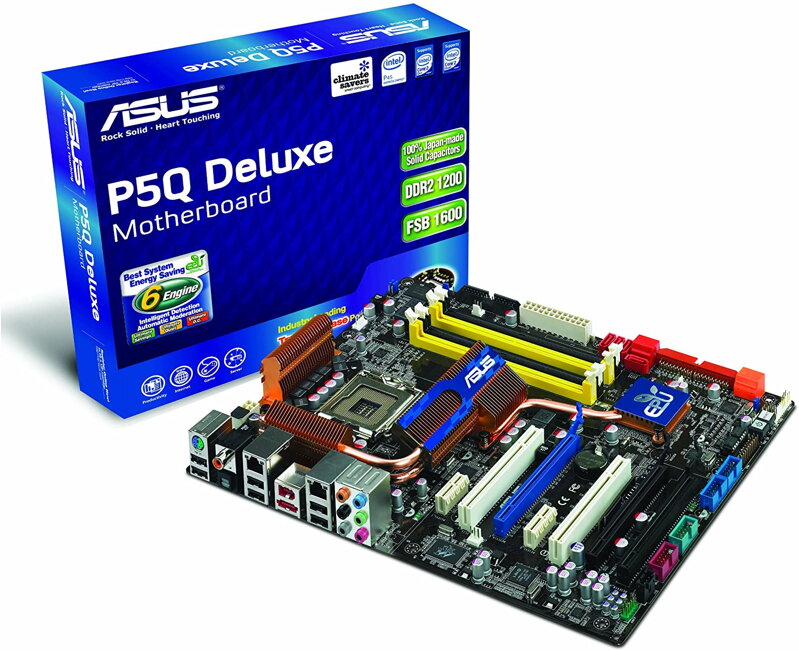

ASUS P5Q Deluxe

Komplet balenie v krabici

Long product name ASUS P5Q Deluxe LGA 775 (Socket T) ATX :
P5Q Deluxe - LGA775, Intel® P45 / ICH10R, DDR2 1200 / 1066 / 800 / 667 MHz, PCIe Gb LAN, 2 x IEEE 1394a, ATX
<<<Less
ASUS P5Q Deluxe LGA 775 (Socket T) ATX:
LGA775 Intel® Core™2 Processor Ready
This motherboard supports the latest Intel® Core™2 processors in LGA775 package. It also can support Intel® 45nm Multi-Core CPU. With new Intel® Core™ microarchitecture technology and 1600/1333/1066/800MHz FSB, Intel® Core™2 processor is one of the most powerful and energy efficient CPU in the world.

PCIe 2.0
Double Speed; Double Bandwidth
This motherboard supports the latest PCIe 2.0 devices for double speed and bandwidth which enhances system performance.

Memory Features
Dual-Channel DDR2 1200
The motherboard supports DDR2 memory that features data transfer rates of 1200/1066/800/667 MHz to meet the higher bandwidth requirements of the latest operation system, 3D graphics, multimedia, and Internet applications. The dual-channel DDR2 architecture doubles the bandwidth of your system memory to boost system performance, eliminating bottlenecks with peak bandwidths of up to 19.2GB/s.

ASUS Power Saving Solution
ASUS EPU-6 Engine
System Level Energy Saving
The new ASUS EPU - the world´s first power saving engine, has been upgraded to a new 6 engine version, which provides total system power savings by detecting current PC loadings and intelligently moderating power in real-time. With auto phase switching for components (which includes the CPU, VGA card, memory, chipset, hard drives and CPU cooler/system fans), the EPU automatically provides the most appropriate power usage via intelligent acceleration and overclocking - helping save power and money

AI Nap
Minimize noise and power consumption when temporarily away!
With AI Nap, users can instantly snooze your PC without terminating the tasks. System will continue operating at minimum power and noise when user is temporarily away. It keeps downloading files or running applications in quietest state while you´re sleeping. Simply click keyboard or mouse, you can swiftly wake up the system in few seconds.

ASUS Exclusive Features
ASUS Express Gate
Surf the Internet in 5-second-boot time without entering Windows
With a fast bootup speed of only 5 seconds, the ASUS Express Gate offers an optional Linux OS bootup that allows you to enjoy instant access to commonly used functions like accessing the Internet, VoIP, and Web emailing without entering the OS.

Short summary description ASUS P5Q Deluxe LGA 775 (Socket T) ATX:
ASUS P5Q Deluxe, Intel, LGA 775 (Socket T), 16 GB, ATX, 7.1 channels, Realtek ALC1200

Long summary description ASUS P5Q Deluxe LGA 775 (Socket T) ATX:
ASUS P5Q Deluxe. Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T). Maximum internal memory: 16 GB. Motherboard form factor: ATX, Audio output channels: 7.1 channels, Audio chip: Realtek ALC1200. Width: 305 mm, Depth: 224 mm. Expansion slots: 1 x PCI Express 2.0 x16 2 x PCI Express x1 3 x PCI

Report mistake
Specs Reviews
Processor
Processor manufacturer *Intel
Processor socket *LGA 775 (Socket T)
Memory
Number of memory slots *4
Non-ECCYes
Maximum internal memory *16 GB
Storage controllers
RAID levels0,1
Internal I/O
USB 2.0 connectors *6
Number of SATA connectors6
Front panel audio connectorYes
CD/AUX audio inYes
Power fan connectorYes
CPU fan connectorYes
Chassis intrusion connectorYes
Number of IEEE1394 connectors1
TPM connectorYes
Rear panel I/O ports
USB 2.0 ports quantity *6
Ethernet LAN (RJ-45) ports *2
eSATA ports quantity1
PS/2 ports quantity2
Firewire (IEEE 1394) ports1
S/PDIF out portYes
Digital audio optical out1
Features
Audio chipRealtek ALC1200
Audio output channels *7.1 channels
Motherboard form factor *ATX
Power source typeATX
Expansion slots
Expansion slots1 x PCI Express 2.0 x16 2 x PCI Express x1 3 x PCI
Weight & dimensions
Width305 mm
Depth224 mm
Other features
Floppy disk drive connector
