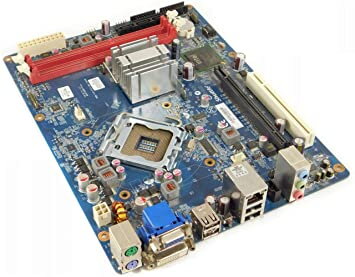

Shuttle SG41P

FORM FACTOR Shuttle Form Factor / Support mini-ITX also
PROCESSOR Intel Core 2 Quad、 Core 2 Duo,Dual-Core,Celeron 400 serial support
FSB 800/1066/1333*MHz support
(*Native support)
CHIPSET Intel G41 + ICH7
MEMORY 2 x 240 pin DDR3 DIMM slots,4GB per DIMM (Max 8GB)
Dual Channel DDR3 800/1066
VIDEO OUTPUT Built-in Intel Intel X4500
DirectX 10 Support
DVI resolution 2048 x 1526
AUDIO IDT 92HD89C
5.1 channel High Definition Audio
ETHERNET Marvell 88E8057
IEEE 802.3u 100Base-T specification revision 1.0
100Mb/s and 1Gb/s operation
Support Wake-On-LAN function
STORAGE INTERFACE (3) 3.0Gb/s bandwidth SATA II
(1) Ultra DMA/100 IDE channel
ONBOARD CONNECTORS (3) SATA connectors
(1) ATA100 bus IDE connector
(2) 1x5 pin USB 2.0 header
(2) Serial Port Header
(1) ATX main power connector
(1) ATX 12V power connector
(2) set 4pin fan connectors
FRONT PANEL (2) USB 2.0 ports
(1) Microphone-In
(1) Earphone-Out
Power-On button
Power LED
HDD LED
BACK PANEL (1) PCI-E x16 slot
(1) PCI slot
(1) RJ45 Gigabit LAN port
(1) DVI-D port
(1) VGA port
(4) USB 2.0 ports
(1) PS/2 keyboard port
(1) PS/2 mouse port
(1) Line in port
(1) Line out port
(1) MIC in port
(1) Clear CMOS button
(2) Wireless Antenna fixture
DRIVE BAYS (2) 3.5' bay
(1) 5.25' bay
DIMENSIONS 325(L) x 215(W) x 204(H) mm
POWER 250W
Input:100-240V AC
EXPANSION SLOT (1) PCI-E x16 slot
(1) PCI slot

+I/O shield krytka
