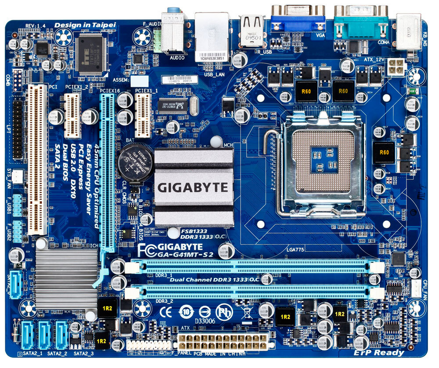

Gigabyte GA-G41MT-S2

CPU
Support for an Intel® Core™ 2 Extreme processor/Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/ Intel® Pentium® processor/Intel® Celeron® processor in the LGA775 package
L2 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Front Side Bus
1333/1066/800 MHz FSB
Chipset
North Bridge: Intel® G41 Express Chipset
South Bridge: Inte® ICH7
Memory
2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory
* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
Dual channel memory architecture
Support for DDR3 1333(O.C.)/1066/800 MHz memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
North Bridge:
1 x D-Sub port
Audio
Realtek ALC887-VD2
High Definition Audio
2/4/5.1/7.1-channel
* To enable 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN
1 x Atheros AR8151 chip (10/100/1000 Mbit)
Expansion Slots
1 x PCI Express x16 slot, running at x16
2 x PCI Express x1 slots
1 x PCI slot
Storage Interface
South Bridge:
4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
USB
South Bridge:
Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
2 x USB 2.0/1.1 headers
1 x parallel port
1 x clearing CMOS jumper
Back Panel Connectors
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x serial port
1 x D-Sub port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)
I/O Controller
iTE IT8718
H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU overheating warning
CPU/System fan fail warning
CPU fan speed control
* Whether the CPU fan speed control function is supported will depend on the CPU cooler you install.
BIOS
2 x 8 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
