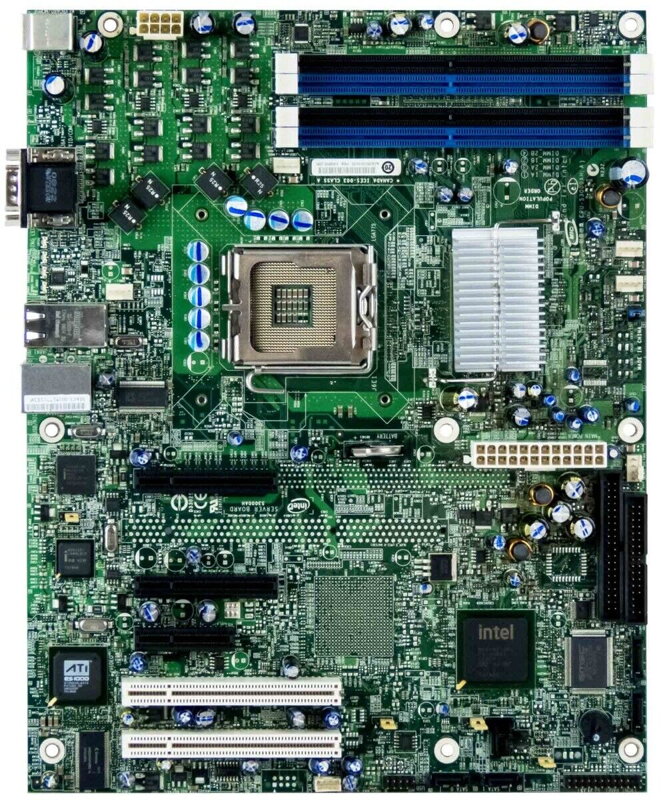

Intel Server Board S3000AH

Server Board Feature Set
The server board supports the following feature set:
ƒ Processor and Front Side Bus (FSB) support
- Supports Dual-Core Intel® Xeon® processor 3000 series, Dual-Core Intel® Xeon®
processor 3200 series, Intel® Pentium® processor Extreme Edition (S3000AHLX and
S3000AH only), Intel® Pentium® D processors, Intel® Pentium® 4 processors, and
Intel® Celeron® D processors in the Intel® LGA775 package
- Supports Intel® dual-core technology
- Supports Hyper-Threading Technology
- Supports Intel® Extended Memory System 64 Technology (Intel® EM64T)
ƒ Intel® 3000 Chipset components
- Intel® 3000 MCH Memory Controller Hub
- Intel® ICH7R I/O Controller
- Intel® 6702 PXH-V PCI-X* Hub (S3000AHLX SKU only)
- 12-deep In-order Queue
ƒ Memory System
- Four DIMM sockets supporting DDR2 533/667MHz DIMMs
- Data bandwidth per channel of 4.2 GB/s or 8.4 GB/s in dual channel when using
DDR2 667MHz
- Support for up to two DDR2 channels for a total of four DIMMs (two DIMMs /
Channel) providing up to 8 GB max memory capacity
- Support for 256 MB, 512 MB, 1 GB, and 2 GB DRAM modules
ƒ I/O Subsystem
- Intel® Server Board S3000AHLX I/O Subsystem (six independent PCI buses):
ƒ Segment A: Two PCI 32-bit/33-MHz 3.3V Universal connectors supporting full
length PCI add-in cards (adapters that support 5 V only are not supported) and
one embedded Intel® 10/100/1000 82541PI Gigabit Ethernet Controller (supports
PCI Specification, Rev 2.3) and one embedded ATI* ES1000 video controller
ƒ Segment B: One x1 PCI Express* resource implemented as a single x4 PCI
Express* connector supporting x1/x2/x4 PCI Express* add-in cards
ƒ Segment C: One x1 PCI Express* resource implemented as an embedded Intel®
10/100/1000 82573E Gigabit Ethernet Controller
ƒ Segment D: One x4 PCI Express* resource supporting a PXH-V PCI-X* Hub.
ƒ Segment E: PXH-V supports one dedicated PCI-X* 66/100MHz slot and the PCIX portion of the Intel® Adaptive Slot
Intel® Server Boards S3000AHLX, S3000AH, and S3000AHV TPS Server Board Overview
Revision 1.4 3
ƒ Segment F: One x8 PCI Express* resource supporting the PCI Express* portion
of the Intel® Adaptive Slot. Supports x1/x2/x4/x8 PCI Express* add-in cards via a
riser card
- Intel® Server Board S3000AH I/O Subsystem (Five independent PCI buses):
ƒ Segment A: Two PCI 32-bit/33-MHz 3.3V Universal connectors supporting full
length PCI add-in cards (adapters which support 5V only are not supported) and
one embedded Intel® 10/100/1000 82541PI Gigabit Ethernet Controller (supports
PCI Specification, Rev 2.3) and one embedded ATI* ES1000 video controller
ƒ Segment B: One x1 PCI Express* resource implemented as a single x4 PCI
Express connector supporting x1/x2/x4 PCI Express add-in cards
ƒ Segment C: One x1 PCI Express* resource implemented as an embedded Intel®
10/100/1000 82573E Gigabit Ethernet Controller
ƒ Segment D: One x4 PCI Express* resource implemented as a single x8 PCI
Express connector supporting x1/x2/x4/x8 PCI Express add-in cards
ƒ Segment F: One x8 PCI Express* resource implemented as a single x8 PCI
Express connector supporting x1/x2/x4/x8 PCI Express add-in cards
- Intel® Server Board S3000AHV I/O Subsystem (Four independent PCI Buses):
ƒ Segment A: Two PCI 32-bit/33-MHz 3.3V Universal connectors supporting full
length PCI add-in cards (adapters which support 5V only are not supported) and
one embedded ATI ES1000 video controller
ƒ Segment C: One x1 PCI Express* resource implemented as an embedded Intel®
10/100/1000 82573E Gigabit Ethernet Controller
ƒ Segment D: One x4 PCI Express* resource implemented as a single x8 PCI
Express connector supporting x1/x2/x4/x8 PCI Express add-in cards
ƒ Segment F: One x8 PCI Express* resource implemented as a single x8 PCI
Express connector supporting x1/x2/x4/x8 PCI Express add-in cards
ƒ Serial ATA host controller
- Four independent SATA ports support data transfer rates up to 3.0 Gb/s (300 MB/s)
per port
ƒ IDE controller
- One IDE connector, supporting a maximum of two ATA-100 compatible devices
ƒ Universal Serial Bus 2.0 (USB)
- Two external USB ports (located at the rear panel) with an additional internal header
providing two optional USB ports for front panel support
- Supports wake-up from sleeping states S1 and S4 (S3 not supported)
- Supports legacy keyboard and mouse connections when using a PS/2-USB dongle
ƒ LPC (Low Pin Count) bus segment with one embedded device
- Super I/O controller (SMSC* SCH5027D) providing all PC-compatible I/O (floppy,
serial, keyboard, mouse, and two serial com ports) and integrated hardware
monitoring
ƒ SSI-compliant connectors for SSI interface support
ƒ Standard 24-pin SSI front panel, 2x12 main power connector, and 2x4 CPU power
connector
ƒ Fan Support
Server Board Overview Intel® Server Boards S3000AHLX, S3000AH, and S3000AHV TPS
4 Revision 1.2
- Five general purpose 4-pin fan headers
ƒ One 4-pin processor fan header (active heat sink required)
ƒ Four 4-pin system fan headers: SYS FAN1, SYS FAN2, and SYS FAN3 for Intel
high density applications to support Intel® Server System SR1530AH; SYS FAN4
is used in the Intel® Entry Server Chassis SC5295-E
ƒ Diagnostic LEDs to display POST code indicators during boot
ƒ On-board SATA RAID
- Intel® Matrix Storage Technology supports software SATA RAID 0, 1, 5, and 10.
ƒ Microsoft Windows* driver support only
− Intel® Embedded Server RAID Technology and the LSI Logic SATA controller
support software SATA RAID 0, 1, and 10
ƒ Driver support available for all supported operating systems
