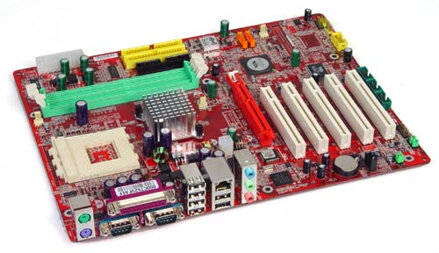

MSI KT6 Delta-FISR

CPU Interface Socket-462
Chipset VIA KT600 North Bridge
VIA VT8237 South Bridge
Bus Speeds up to 280MHz (in 1MHz increments)
Core Voltage up to 1.850V in 0.0250V increments
up to 2.300V in 0.150V increments after 1.850V
I/O Voltage N/A
DRAM Voltage up to 3.30V (in 0.05V increments excluding 3.15V)
Memory Slots 3 X 184-pin DDR DIMM Slots
Expansion Slots 1 X AGP 8X Slot
5 X PCI Slots
Onboard IDE RAID Promise PDC20378 RAID Controller (two SATA connectors, one IDE connector)
Onboard USB 2.0/IEEE-1394 Eight USB 2.0 ports supported by VT8237
VIA VT6306 IEEE-1394 FireWire (up to 3 ports available)
Onboard LAN Broadcom 5788 10/100 controller
Onboard Audio C-Media CMI9739A AC'97 codec
Onboard Serial ATA Two SATA connectors via VT8237 (RAID 0, 1 & 0 + 1)
Promise PDC20378 Controller (two SATA connectors)

+I/O shield krytka
