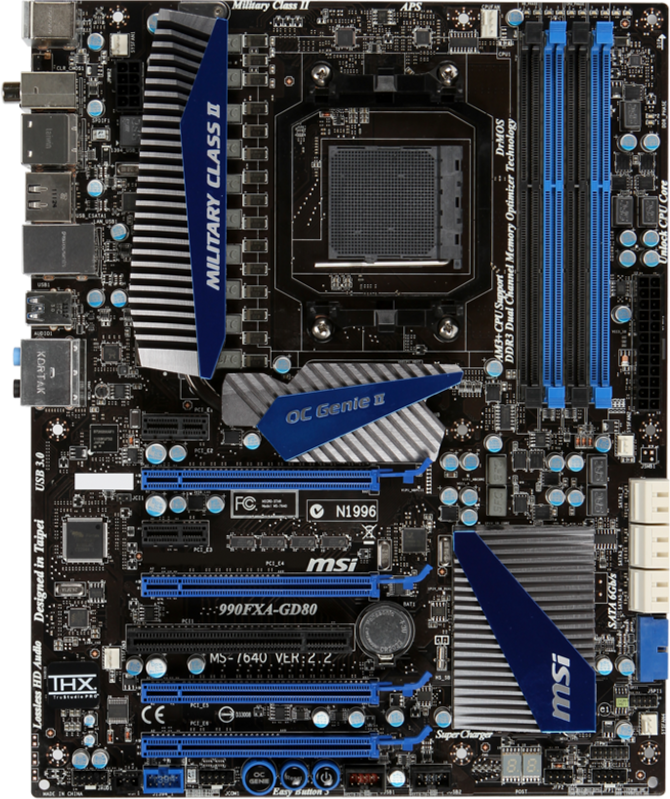

MSI 990FXA-GD80

CPU

• 64bit AMD® FX, Phenom II X6/X4/X3/X2, Athlon II X4/X3/X2 and Sempron CPU in AM3 / AM3+ package.
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Hyper Transport Bus

• HyperTransport 3.0 supporting speed up to 5200MT/s

Chipset

• AMD® 990FX and SB950 Chipset

Main Memory

• Supports four unbuffered DIMM of 1.5 Volt DDR3 800/1066/1333/1600/1800*/2133* (OC) DRAM, 32GB Max

Slots

• 4 PCI Express 2.0 x16 slots
• 2 PCI Express 2.0 x1 slots
• 1 PCI slot, support 3.3V/ 5V PCI bus Interface.

On-Board SATA

• 6 SATA III (1~6) ports by AMD® SB950
- Supports storage and data transfers at up to 6Gb/s

RAID Function

- SATA III 1~6 support RAID 0, 1, 5, 10 mode by AMD® SB950

MSI Reminds You...
• The RAID setup floppy disk is optional depending on the districts. You can download the files from the website to make the setup disk.

USB 3.0

• 2 USB 3.0 ports by NEC® D720200

Audio

• Chipset integrated by Realtek® ALC892
- True Blu-ray Audio Support
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec

LAN

• Realtek PCI-E GbLAN controller 8111E
- Integrated Fast Ethernet MAC and PHY in single chip
- Supports 10Mb/s, 100Mb/s and 1000Mb/s
- Compliance with PCI-Express Bus specification v1.0a

IEEE1394/ FireWire

• VIA® VT6315N chipset
- Supports up to two 1394 ports. (pinheader x2)
- Transfer rate is up to 400Mbps.

Internal I/O Connectors

- 1 x ATX 24-pin power connector
- 1 x ATX 8-pin 12V CPU power connector
- CPU x 1 / System x 4 FAN connectors
- 1 x Front panel audio connector
- 1 x Front panel connector
- 1 x Chassis intrusion switch connector
- 2 x USB 2.0 connectors
- 1 x USB 3.0 connector
- 6 x Serial ATA III connectors
- 1 x IEEE1394 connector
- 1 x Serial port connector
- 1 x Power button
- 1 x Reset button
- 1 x OC Genie button
- 1 x Debug LED display
- 1 x Clear CMOS jumper
- 1 x SPDIF-out connector
- 1 x TPM module connector

Back Panel I/O Ports

- 1 x PS/2 Keyboard port
- 1 x PS/2 Mouse port
- 1 x Claer CMOS button
- 1 x Coaxial SPDIF-out
- 1 x Optical SPDIF-out
- 4 x USB 2.0 ports
- 2 x USB 3.0 ports (blue)
- 2 x eSATA / USB 2.0 Combo ports
- 1 x RJ45 LAN Jacks
- 1 x 6 in 1 audio jack

Dimension

• 30.5cm(L) x 24.4cm(W) ATX Form Factor

Mounting

• 9 mounting holes.
