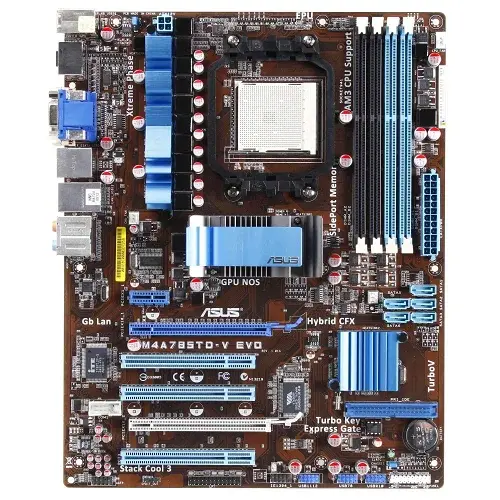

ASUS M4A785TD-V EVO

Popis produktu:

CPU:
AMD Socket AM3 ;Phenom™II /Athlon™II /Sempron™ 100 Series Processors
AMD Cool 'n' Quiet™ Technology
Supports 45nm CPU

Chipset:
AMD 785G/SB710

System Bus:
Up to 5200 MT/s HyperTransport™ 3.0

Memory:
4 x DIMM, Max. 16 GB, DDR3 1800(O.C.)*/1600(O.C.)/1333/1066/800 ECC,Non-ECC,Un-buffered Memory
Dual Channel memory architecture

Expansion Slots:
2 x PCIe 2.0 x16 (blue @ x16 mode,gray @ x4 mode)
1 x PCIe x1
3 x PCI

VGA:
Integrated ATI Radeon™ HD 4200 GPU
SidePort Memory - onboard 128MB DDR3 1333 memory

Storage:
SB710 Chipset
1 xUltraDMA 133/100/66 for up to 2 PATA devices
5 xSATA 3 Gb/s ports Support RAID 0,1,10,JBOD
1 x eSATA 3Gb/s port

LAN:
RTL8112L Gigabit LAN controller featuring AI NET 2

Audio:
VT1708S 8-Channel High Definition Audio CODEC

IEEE 1394:
VT6308P controller supports 2 x 1394a ports (1 at mid-board; 1 at back panel)

USB:
12 USB 2.0/1.1 ports (6 ports at mid-board, 6 ports at back panel)

ASUS Unique Features:
ASUS Power Solutions:
- 8+2 Phase Power Design
ASUS Green Design:
- EPU
Express Gate
ASUS Quiet Thermal Solution:
ASUS EZ DIY:

Overclocking Features:
Intelligent overclocking tools
SFS (Stepless Frequency Selection)
Overclocking Protection

Special Features:
100% All High-quality Conductive Polymer Capacitors
AMD OverDrive Support*
*Advanced cooling system is required when advanced overclock functions of AMD OverDrive are enabled.

Back Panel I/O Ports:
1 x PS/2 Keyboard/Mouse Combo port
1 x DVI
1 x D-Sub
1 x HDMI
1 x External SATA
1 x S/PDIF Out (Optical)
1 x IEEE 1394a
1 x LAN(RJ45) port
6 x USB 2.0/1.1
8 -Channel Audio I/O

Internal I/O Connectors:
3 x USB connectors (6 ports)
1 x COM connector
1 x IDE connector
5 x SATA connectors
1 x CPU Fan connector
1 x Chassis Fan connectors
1 x Power Fan connector
Front panel audio connector
1 x IEEE 1394a connector
1 x S/PDIF Out Header
1x LPT connector
24-pin ATX Power connector
4-pin ATX 12V Power connector
System Panel

BIOS:
8 Mb Flash ROM AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ACPI 2.0a, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

Manageability:
WOL by PME,WOR by PME,WOR by Ring,PXE

Accessories:
User's manual
1 x I/O Shield
1 x UltraDMA 133/100/66 cable
4 x SATA cable(s)
1 x Q-Connector
Support Disc Drivers
ASUS PC Probe II
Express Gate
Anti-virus software (OEM version)
ASUS Update
AMD OverDrive Utility (AOD)

Form Factor:
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

+I/O shield krytka
