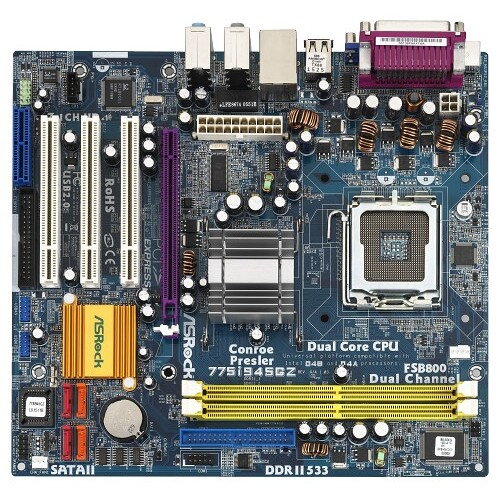

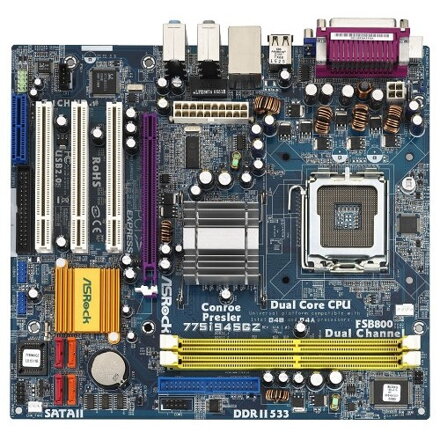

ASRock 775i945GZ LGA 775 Intel 945GZ Micro ATX Motherboard

LGA 775 for Intel Core 2 Duo / Pentium® D / Pentium® 4 / Celeron® D processors
Intel® 945GZ Chipset
Supports FSB 800/533 MHz processor, EM64T CPU and H-T Technology
Supports Dual Channel DDR2 533 x 2 DIMM slots
Intel® Graphics Media Accelerator 950, Pixel Shader 2.0, DirectX 9.0 and Max. shared memory 224MB
1 x AGI Express slot
Hybrid Booster - Safe Overclocking Technology
Untied Overclocking : During Overclocking, FSB enjoys better margin due to fixed PCIE/ PCI Buses
4 x SATA2 3.0 Gb/s connectors
7.1 CH Windows® Vista Premium Level HD Audio (ALC888 Audio Codec)
Worldwide First Embedded MB with Windows® Vista Premium Logo
HD 8CH I/O: 4 ready-to-use USB Ports, HD 7.1 channel audio jack
Product Specifications
General
CPU
- LGA 775 for Intel® Core 2 Duo* / Pentium® D / Pentium® 4 / Celeron® D processors

- FSB 800/533 MHz

- Supports Hyper-Threading Technology

- Supports Untied Overclocking Technology

- Supports EM64T CPU

*This motherboard supports FSB800-CPU. If you plan to adopt Core 2 Duo CPU on this motherboard, you can only adopt Conroe 800 E4XXX processors.
Chipset
- Northbridge: Intel® 945GZ

- Southbridge: Intel® ICH7
Memory
- Dual Channel DDR2 memory technology

- 2 x DDR2 DIMM slots

- Supports DDR2 533 non-ECC, un-buffered memory

- Max. capacity of system memory: 2GB
BIOS
- 4Mb AMI BIOS

- AMI Legal BIOS

- Supports "Plug and Play"

- ACPI 1.1 Compliance Wake Up Events

- Supports Jumperfree

- SMBIOS 2.3.1 Support
Audio, Video and Networking
Graphics
- Intel® Graphics Media Accelerator 950

- Pixel Shader 2.0, DirectX 9.0

- Max. shared memory 224MB
Audio
- 7.1 CH Windows® Vista Premium Level HD Audio (ALC888 Audio Codec)
LAN
- Realtek PCI LAN 8101L

- Speed: 10/100 Ethernet

- Supports Wake-On-LAN

- Supports PXE
Expansion / Connectivity
Slots
- 3 x PCI slots

- 1 x AGI Express slot (PCI Express x4)

- 1 x HDMR slot
Connector
- 4 x SATA2 3.0 Gb/s connectors (No Support for RAID and Hot Plug functions)

- 1 x ATA100 IDE connector (support 2 x IDE devices)

- 1 x Floppy connector

- 1 x IR header

- 1 x COM header

- CPU/Chassis FAN connectors

- 20 pin ATX power connector

- 4 pin 12V power connector

- CD in header

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
Rear Panel I/O
HD 8CH I/O

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x Serial Port: VGA

- 1 x Parallel Port (ECP/EPP support)

- 4 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 LAN Port

- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Unique Feature
Hybrid Booster:

- CPU Frequency Stepless Control

- ASRock U-COP

- Boot Failure Guard (B.F.G.)

Hardware Monitor
- CPU Temperature Sensing

- Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Form Factor
- Micro ATX Form Factor: 9.6-in x 8.6-in, 24.4 cm x 21.8 cm
OS
- Microsoft® Windows® 2000 / XP / XP 64-bit / Vista / Vista 64-bit compliant
Certifications
- FCC, CE, WHQL

+I/O shield krytka
