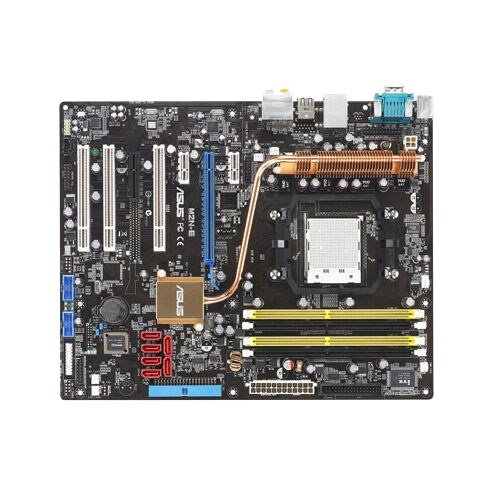

ASUS M2N-E

CPU
Support AMD® Socket AM2+/ AM2 Phenom FX(2000MT/s)/Phenom(2000MT/s)/ Athlon 64 X2 / Athlon 64 FX / Athlon 64/ Sempron
AMD Cool 'n' Quiet™ Technology
AMD64 architecture enables simultaneous 32-bit and 64-bit computing
AMD Live!™ Ready
Chipset
NVIDIA nForce® 570 Ultra™ MCP(media and communications processor)
Front Side Bus
2000 / 1600 MT/s
Memory
Dual channel memory architecture
4 x 240-pin DIMM, support max. 8GB DDR2 800/667/533 ECC and non-ECC, un-buffered memory
*When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Expansion Slots

1 x PCI Express x16 slot
1 x PCI Express x4 slot
2 x PCI Express x1
3 x PCI 2.2
Storage

NVIDIA nForce® 570 Ultra™ MCP supports:
- 1 x Ultra DMA 133 / 100 / 66 / 33
- 6 x Serial ATA 3.0Gb/s
- NVIDIA MediaShield™ RAID supports RAID 0, 1, 0+1, 5 and JBOD span cross Serial ATA drives
LAN
NVIDIA nForce® 570 Ultra™ MCP built-in Gigabit MAC with external Marvell PHY
Audio
ADI 1988 8-channel High Definition Audio CODEC
Support Jack-Sensing, Enumeration, Multi-streaming and Jack-Retasking
S/PDIF out on back I/O port
USB
Max.10 USB2.0/1.1 ports
ASUS Unique Features
AI Nap
AI Gear
Advanced Thermal Design:
- ASUS Fanless Design:Heat-pipe Thermal solution
ASUS Crystal Sound:
- Noise Filter
Overclocking Features
Intelligent overclocking tools:
- ASUS AI NOS™ (Non-delay Overclocking System)
- AI Overclocking (intelligent CPU frequency tuner)
- ASUS PEG Link (automatically performance tuning)
ASUS O.C. Profile: overclocking configuration-sharing tool
Precision Tweaker:
- vDIMM: 4-step DRAM voltage control
- vCore: Adjustable CPU voltage at 0.0125V increment
- Stepless Frequency Selection (SFS): allowing FSB tuning from 200MHz up to 400MHz at 1MHz increment
- PCI Express x16 Frequency from 100MHz up to 200MHz at 1 MHz increment
Overclocking Protection:
- ASUS C.P.R.(CPU Parameter Recall)
ASUS AI Booster Utility
Adjustable FSB frequencies with fixed PCI/PCI Express frequencies
Other ASUS Special Features
ASUS EZ DIY:
-ASUS CrashFree BIOS3
-ASUS EZ Flash2
ASUS Music Alarm
Back Panel I/O Ports
1 x PS/2 Keyboard port(purple)
1 x PS/2 Mouse (green)
1 x Coaxial S/PDIF Out port
1 x LAN (RJ45) port
4 x USB 2.0/1.1 ports
1 x COM port
8-channel Audio ports
Internal I/O Connectors
3 x USB 2.0 connectors support additional 6 USB 2.0 ports
1 x Floppy disk drive connector
1 x IDE connector for two devices
6 x SATA connectors
1 x CPU / 4 x Chassis / 1 x Power Fan connectors
1 x ADH connector
1 x Parallel connector
Chassis Intrusion connector
Front Panel Audio connector
1x S/PDIF output connector
CD audio in
24-pin ATX Power connector
System panel connector
4-pin ATX 12V Power connector
BIOS
4Mb AWARD BIOS, PnP, DMI, WfM2.0, SM BIOS 2.3
Manageability
WOL by PME, WOR by PME, Wake on Wireless LAN, Chasis Intrusion, PXE
Accessories
1 x I/O Shield
Support Disc
Drivers
ASUS PC Probe II
ASUS Update
ASUS AI Booster
NVIDIA MediaShield™ RAID
Anti-virus software (OEM version)
Form Factor
ATX Form Factor, 12"x 9.6" (30.5cm x 24.5cm)
