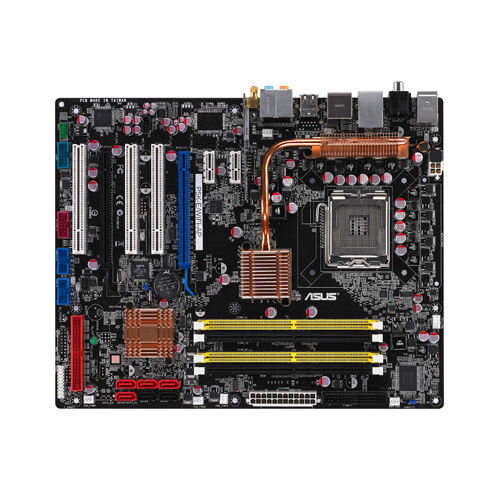

ASUS P5K-E/WIFI-AP

CPU
Intel® Socket 775 Core™2 Quad/Core™2 Extreme/Core™2 Duo/Pentium® Extreme/Pentium® D/Pentium® 4 Compatible with Intel® 05B/05A/06 processors
Support Intel® 45nm CPU
*This motherboard supports FSB 1333/1066/800
** Please update the latest BIOS to support Intel 45nm CPU
Chipset
Intel® P35
Intel ICH9R
Intel Fast Memory Access Technology
Front Side Bus
1600/1333/1066/800 MHz
Memory
4 x DIMM, Max. 8 GB, DDR2 1066*/800/667 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
*The chipset officially supports the memory frequency up to DDR2 800MHz. Tuned by ASUS Super Memspeed Technology, this motherboard natively supports up to DDR2 1066MHz
Please refer to www.asus.com or user manual for Memory QVL.
**When installing total memory of 4GB capacity or more, WindowsR 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Expansion Slots
2 x PCIe x16 (blue @ x16 mode, black @ x4 or x1 mode) supports CrossFire Technology
2 x PCIe x1
3 x PCI
Storage
Southbridge
6 xSATA 3 Gb/s ports
Support RAID 0,1,5,10
JMicron® JMB363 PATA and SATA controller
1 xUltraDMA 133/100/66 for up to 2 PATA devices
2 xExternal SATA Gb/s port (SATA On-the-Go)
Support RAID 0,1,JBOD
LAN
Gigabit LAN controllers, featuring AI NET2
Marvell88E8056® PCI-E Gigabit LAN controllers
Wireless LAN
ASUS WiFi-AP Solo
54 Mbps IEEE 802.11g and backwards compatible with 11 Mbps IEEE 802.11b
Software Access Point mode
Station mode: Infrastruceure mode and Ad-Hoc mode
Audio
ADI® AD1988B 8-Channel High Definition Audio CODEC
Coaxial / Optical S/PDIF out ports
ASUS Noise Filter
IEEE 1394
Agere® FW322 1394a controller supports 2 x 1394a ports (one at midboard; one at back panel)
USB
10 USB 2.0/1.1 ports (4 ports at mid-board, 6ports at back panel)
ASUS Unique Features
ASUS Quiet Thermal Solution
- ASUS AI Gear 2
- ASUS AI Nap
- ASUS 8-Phase Power Design
- ASUS Fanless Design: Pure Copper Heat-pipe solution
- ASUS Fanless Design: Stack Cool 2
- ASUS Q-Fan 2

ASUS Crystal Sound
- ASUS Noise Filter
ASUS EZ DIY
- ASUS Q-Connector
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS AI Slot Detector
ASUS WiFi@Home
- ASUS WiFi-AP Solo
Other Features
ASUS MyLogo 3
Multi-language BIOS
Overclocking Features
Intelligent overclocking tools
- ASUS AI Booster Utility
- ASUS AI NOS (Non-delay Overclocking System)
Precision Tweaker
- vDIMM: 16 -step DRAM voltage control
- vCore: Adjustable CPU voltage at 0.0125V increment
- vChipset 4-step voltage control
SFS (Stepless Frequency Selection)
- FSB tuning from 200MHz up to 800MHz at 1MHz increment
- Memory tuning from 667MHz up to 1333MHz
- PCI Express frequency tuning from 100MHz up to 150MHz at 1MHz increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)
Back Panel I/O Ports
1 x PS/2 Keyboard
2 x External SATA
1 x S/PDIF Out (Coaxial + Optical)
1 x IEEE 1394a
1 x LAN(RJ45) port
6 x USB 2.0/1.1
8 -Channel Audio I/O
1 x WiFi-AP Solo™ antenna jack
Internal I/O Connectors
2 x USB connectors support additional 4 USB ports
1 x Floppy disk drive connector
1 x IDE connector
6 x SATA connectors
1 x IEEE 1394a connector
1 x CPU Fan connector
4 x Chassis Fan connector
1 x Power Fan connector
1 x S/PDIF Out connector
2 x 4-pin ATX 12V Power connector
24 Power connector
Front panel audio connector
COM connector
Chassis Intrusion connector
CD/AUX audio in
System Panel
BIOS
16 Mb Flash ROM DMI 2.0
AMI BIOS
PnP
WfM 2.0
SM BIOS 2.3
ACPI 2.0a
Multi-language BIOS
ASUS EZ Flash 2
ASUS CrashFree BIOS 3
Manageability
WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE
