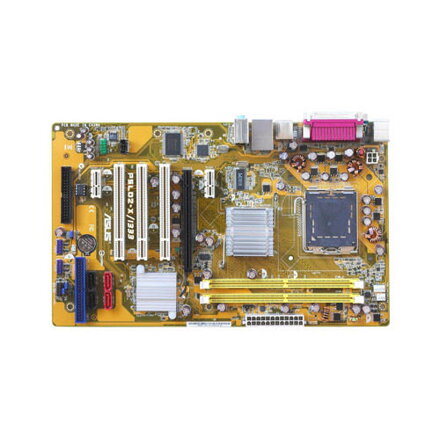

ASUS P5LD2-X/1333

CPU

Intel Socket 775 Core™2 Duo/Pentium® D/Pentium® 4/Celeron Processors
Support Intel® 45nm CPU
Intel® Hyper-Threading Technology ready
Support Enhanced Intel SpeedStep Technology (EIST)
Chipset
Intel 945GC
Intel ICH7

Front Side Bus
1333/1066/800/533 MHz (*1333 O.C.)
Memory
2 x240-pin DIMM, Max. 4 GB, DDR2 667/533/400 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
*When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Expansion Slots
1 x PCIe x16
2 x PCIe x1
3 x PCI
Storage
Southbridge
1 xUltraDMA 100/66/33
4 x Serial ATA 150/300
LAN
PCIe 100/10 LAN
Audio
ALC662 High Definition Audio 6 -Channel CODEC
S/PDIF out on back I/O port
USB
8 USB 2.0 ports
Special Features
ASUS MyLogo
ASUS EZ Flash
ASUS CrashFree BIOS 2
ASUS CPU Lock Free
ASUS C.P.R.(CPU Parameter Recall)
ASUS Q-Fan
ASUS CPU multiplier
Back Panel I/O Ports
1 x Parallel
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x S/PDIF Out
1 x LAN(RJ45) port
4 x USB 2.0/1.1
1 x COM port
6 -Channel Audio I/O
Internal I/O Connectors
2 x USB connectors supports additional 4 USB 2.0 ports
x CPU Fan connector
x Chassis Fan connector
Azalia High definition Analog Front panel Audio connector
1 x4-pin ATX 12V Power connector
Chassis Intrusion connector
CD/AUX audio in
4-pin internal Speaker connector
BIOS
4 Mb Flash ROM
Special H/W write protection,
DMI v2.0
AMI BIOS
PnP
WfM 2.0
SM BIOS v2.4
ACPI v2.0
Manageability
WOL by PME,WOR by PME,WOR by Ring
Form Factor
ATX Form Factor
12 inch x 7.2 inch ( 30.5 cm x 18.3 cm )
