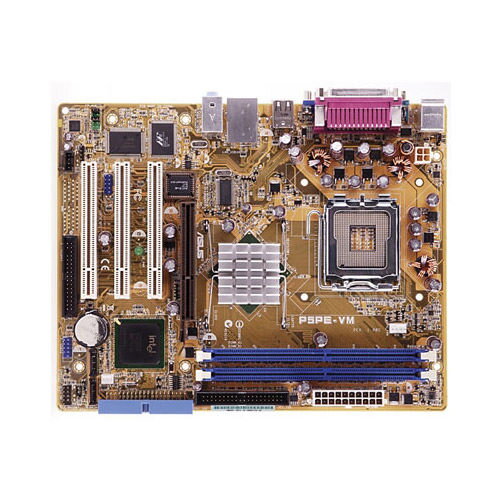

ASUS P5PE-VM

CPU
LGA775 socket for Intel®Pentium D/Pentium 4/Celeron CPU
Compatible with Intel® 05B/05A and 04B/04A processors
Support Intel®EM64T/Hyper-Threading Technology
(note. This motherboard does not support Intel Pentium® Processor Extreme Edition. )
Chipset
Intel 865G
Intel ICH5
Front Side Bus
1066/800/ 533 MHz
(FSB1066 for external graphic, FSB800 for internal graphic)
Memory
Dual Channel Memory Architecture
2 x 184-pin DIMM Sockets support max. 2GB DDR400/333/266 non-ECC, unbuffered DDR SDRAM memory
VGA
Intel® Extreme Graphics 2
Expansion Slots
1 x AGP 8X
3 x PCI
Storage/RAID
ICH5 South Bridge:
2 x UltraDMA 100/66/33
2 x Serial ATA
USB
Max. 8 USB2.0 ports
Audio
ADI 1888 6-Channel AC'97 Audio CODEC
Audio Sensing Technology
LAN
Marvell 88E8001 GB LAN
Other ASUS Special Features
MyLogo
CrashFree BIOS2
EZ Flash
ASUS C.P.R.(CPU Parameter Recall)
Back Panel I/O Ports
1 x Parallel
1 x COM1
1 x VGA
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x 6-Channel Audio I/O
1 x RJ45
4 x USB 2.0/1.1
Internal I/O Connectors
2 x USB 2.0 connector supports additional 4 USB 2.0 ports
CPU/ Chassis FAN connectors
CD audio in connector
Front Panel Audio connector
20-pin ATX Power connector
4-pin ATX 12V Power connector
BIOS
4 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0
Form Factor
uATX Form Factor, 9.6" x 7.6" (24.5cm x 19.3cm)
