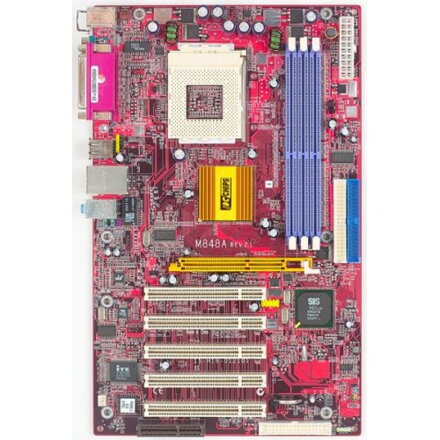

PCCHIPS M848A M848ALU (V2.1) socket 462 zakladna doska

CPU Socket A for AMD Athlon XP / Sempron processor FSB 400/333/266 MHz
Chipset SiS748/963L
Memory 3 x 184-pin DIMM sockets support three 2.5V DDR SDRAMs (DDR400/333/266/200) Maximum: 3GB Expansion Slots
1 x AGP 8X
5 x PCI 1
x CNR slot
LAN VIA VT6103L 10/100Mbps Fast Ethernet PHY
Audio C-Media CMI9739A 6-channel audio Codec Compliant with AC97 2.2 specification
IDE 2 x UltraDMA 133/100/66
Back Panel I/O Ports
1 x PS/2 keyboard
1 x PS/2 mouse
1 x Parallel Port
1 x Serial Port
4 x USB 2.0 Ports
1 x RJ 45 Port
1 x Audio I/O (Line-in, Line-out and Mic-in)
Internal I/O Connectors
amp;
Headers 20-pin ATX power supply connector
1 x Floppy connector-support 360K~2.88MB FDDs
1 x CD in header
1 x USB card reader header
1 x Speaker header
1 x USB header support additional 2 USB2.0 ports
1 x Front panel switch/LED header
CPU / CHS FAN headers
1 x Front panel audio header
System BIOS AMI 2Mb Flash ROM Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI Full support for ACPI revision 1.0 specification
Form Factor ATX Form Factor, 305*190mm
