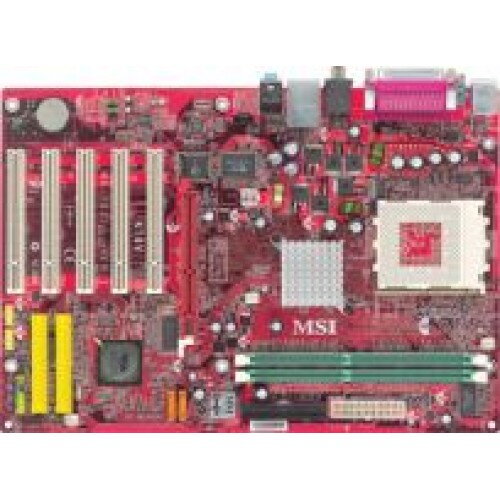

MSI KT6V-LSR

SPECS
GENERAL
Chipset TypeVIA Apollo KT600 / VIA VT8237
Compatible ProcessorsAthlon, Duron, Athlon XP, Sempron
Processor SocketSocket A
Max Bus Speed400 MHz
Max Processors Qty1
ManufacturerMSI Computer Corp.
EXPANSION / CONNECTIVITY
Expansion Slots2 x DIMM 184-pin (2.5 V)
1 x CPU
5 x PCI (3.3 V/ 5 V)
1 x AGP 8x (1.5 V)
Storage InterfacesSATA-150 -connectors: 2 x 7pin Serial ATA
ATA-133 -connectors: 2 x 40pin IDC
Interfaces2 x serial
1 x parallel
1 x audio line-out - mini-jack
1 x audio line-in - mini-jack
1 x microphone - mini-jack
1 x SPDIF out
1 x LAN
1 x PS/2 keyboard
1 x PS/2 mouse
4 x USB 2.0
Internal Interfaces1 x floppy
1 x audio - 4 pin MPC
PROCESSOR
Max Supported Qty1
Installed Qty0
INTERFACE PROVIDED
Qty1, 2, 4
TypeLAN, PS/2 keyboard, PS/2 mouse, SPDIF out, USB 2.0, audio line-in, audio line-out, microphone, parallel, serial
Connector Typemini-jack
NETWORKING
Data Link ProtocolEthernet, Fast Ethernet
Network ControllerRealtek RTL8201BL
NetworkEthernet
PROCESSOR / MEMORY / STORAGE
Max Supported Qty1
MISCELLANEOUS
Package TypeOEM
Product Typemotherboard
AUDIO
Audio CodecRealtek ALC655
Compliant StandardsAC '97
VIDEO
Video Outputnone
AUDIO OUTPUT
Sound Output Mode5.1 channel surround
Compliant StandardsAC '97
Signal ProcessorVIA VT8237
Typesound card
Audio CodecRealtek ALC655
Audio6-channel
RAM
Max Supported Size2 GB
LAN
Network InterfacesEthernet
Network ControllerRealtek RTL8201BL
SUPPORTED RAM
Bus Clock400 MHz, 333 MHz, 266 MHz, 200 MHz
SpeedPC3200, PC2700, PC2100, PC1600
TechnologyDDR
Max Size2 GB
HEADER
BrandMSI
Product LineMSI
ModelKT6V-LSR
Packaged Quantity1
CompatibilityPC
MAINBOARD
Form FactorATX
Processor SocketSocket A
Compatible ProcessorsAthlon, Athlon XP, Duron, Sempron
Data Bus Speed400 MHz
Chipset TypeVIA Apollo KT600
I/O ControllerVIA VT8237
Supported RAM TechnologyDDR SDRAM
Supported RAM Speed200 MHz, 266 MHz, 333 MHz, 400 MHz
Supported RAM StandardPC1600, PC2100, PC2700, PC3200
MAINBOARD FEATURES
BIOS FeaturesACPI support, DMI support
Sleep / Wake Upsuspend to RAM (STR), suspend to disk, wake on LAN (WOL), wake on ring (WOR)
Hardware MonitoringCPU core temperature, CPU core voltage, CPU fan tachometer, CPU overheating protection, chassis temperature
Hardware FeaturesMSI CoreCell
INTERFACES
StorageATA-133, Serial ATA-150 (RAID)
EXPANSION SLOTS
Total Qty1, 2, 5
Voltage1.5 V, 2.5 V, 3.3 V/ 5 V
TypeAGP 8x, CPU, DIMM 184-pin, PCI
DIMENSIONS & WEIGHT
Width11.6 in
Depth8.1 in
STORAGE INTERFACES
InterfaceATA-133, Serial ATA-150
Connector(s)2 x 40pin IDC, 2 x 7pin Serial ATA
INTERNAL INTERFACES
Typeaudio, floppy
Connector Type4 pin MPC
Qty1
FEATURES
BIOS FeaturesACPI support, DMI support
Hardware FeaturesMSI CoreCell
Sleep / Wake UpSuspend to RAM (STR), wake on LAN (WOL), suspend to disk, wake on ring (WOR)
Hardware MonitoringCPU core temperature, chassis temperature, CPU fan tachometer, CPU overheating protection, CPU core voltage

S I/O shield plieškom
