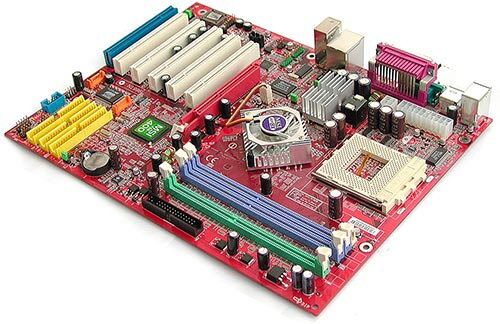

MSI K7N2 Delta-ILSR MS-6570

Specifications


CPU
Supports Socket A for AMD® Athlon/Athlon XP/Duron/Sempron processors
@FSB 266/333/400
Supports up to Athlon XP 3000+ processor or higher


Chipset
NVIDIA® nForce2 SPP Chipset
- Supports DDR200/266/333/400
- Supports external AGP 4X/8X


NVIDIA® nForce2 MCP2/MCP2-T Chipset
- AC97 Interface supporting up to two concurrent codecs
- Ultra ATA133 for the fastest hard disk throughput
- USB 2.0 EHCI/1.1 OHCI controller
- FireWire® for the fastest digital connectivity (MCP2-T only)
- Audio Processing Unit (APU) encodes audio in Dolby® Digital 5.1 format for full surround
sound effects (MCP2-T only)

FSB  133/166/200(266/333/400)MHz clocks are supported.

Main Memory
Supports six memory banks using three 184-pin DDR DIMMs
Support Dual channel PC3200/2700/2100/1600 DDR DRAMs
Supports both 64-bit and 128-bit DDR DRAM
Maximum memory size of 3GB

NOTE: nForce2 does not support x4 memory for 1GB but it could support other density of dram chip such as x 8, x16...

Slots

One AGP (Accelerated Graphics Port) 1.5V 4X/8X slot
Five 32-bit PCI bus slots (support 3.3v/5v PCI bus interface)
One ACR (Advanced Communication Riser) slot

On-Board IDE

An IDE controller on the MCP2/MCP2-T chipset provides IDE HDD/CDROM with PIO,
Bus Master and Ultra DMA133/100/66 operation modes
Can connect up to four IDE devices

Serial ATA Interface

Support 2 serial ATA + 1 ATA133
- RAID O or 1 are supported
- RAID function works w/ATA133 + SATA H/D or 2 SATA H/D
Connect up to 2 Serial ATA devices and 1 ATA133 device

Audio

Realtek ALC650 6-channel audio
Dolby Digital 5.1 format (with MCP2-T option)

Network

Chipset integrated 10/100 Base-T Ethernet/Fast Ethernet
In-Chip IEEE1394
nVIDIA MCP2-T IEEE1394 controller

- Support up to two ports via external bracket

On-Board Peripherals
On-Board Peripherals include:
- One floppy port that supports two FDD with 360KB, 720KB, 1.44MB and 2.88MB
- 1 serial port
- 1 parallel port supports SPP/EPP/ECP mode
- 3 audio ports in vertical
- 2 IEEE1394 connectors (Optional)
- 1 D-Bracket2 pinheader
- 1 S-Bracket pinheader
- 1 Bluetooth pinheader (Optional)
- 6 USB ports (Rear x 4 / Front x 2)
- 1 RJ-45 jack


BIOS
The mainboard BIOS provides "Plug amp; Play" BIOS which detects the peripheral devices
and expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface (DMI) function which records
your mainboard specifications.


Dimension
30.5 cm(L) x 23 cm(W) ATX Form Factor
Mounting
6 mounting holes.
