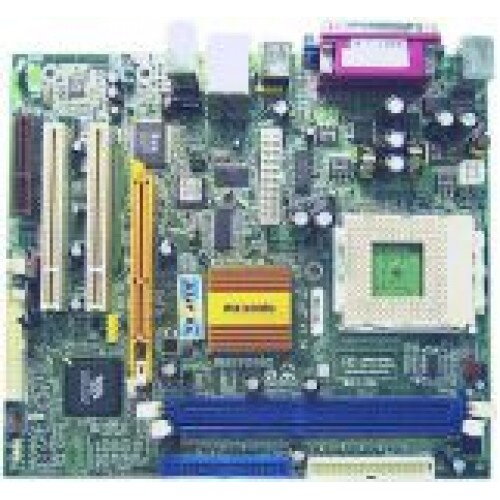

MATSONIC MS8188E

MS8188E

VIA KM400 chipset

Socket A Processor Based Micro ATX Motherboard With VGA/Audio/Lan/USB 2.0 On Board



SPECIFICATION

Processor

Supports Socket A (Socket-462) for AMD® Athlon⢠/ Athlon⢠XP / Duron⢠processor

Supports 600MHz up to 3000+ MHz processor and faster



Chipset

VIA UniChrome KM400 (VT8378/VT8235CE) two chip AGPset

Supports 200/266/333 MHz Front Side Bus

8X V-Link 533MB/s high bandwidth North/South Bridge interconnect



Memory

Supports two 184-pin DDR DIMM maximum size up to 2GB.

Support DIMMs of DDR333/DDR266.



Graphics Adapter Slot

Supports AGP 3.0 Including 2X/4X/8x AGP Data Transfers .

Support Maximum AGP interface bandwidth 2.1GB/s.



Embedded 3D Ultra AGP VGA

Integrated UniChrome⢠2D/3D graphics

Shared memory architecture allows a maximum of 64 MB main memory to act as frame buffer



Embedded USB2.0

480 Mbps data capacity

Backwards compatible with USB 1.1

Compliant with Intel!|s Enhanced Host Controller Interface

Specification Revision 0.95



Embedded LAN on board

10/100Mbps Fast Ethernet LAN on board

Supports IEEE 802.3 and 802.3u standards

Fully compliant ANSI X3.263 TP-PMD physical sub-layer



Audio

Supports built-in AC97 Digital Audio.

Dual full-duplex Direct Sound channels.

H/W Sound Blaster Pro DOS Legacy compatibility.

FM Synthesis for legacy compatibility.

Supports game or MIDI port.



Two Ultra DMA IDE Ports

Supports two IDE ports up to 4 ATAPI devices

Supports up to PIO Mode 4 up to 16.6MBps, Multi Mode 4 up to 133MBps with bus mastering



Bus Architecture

One CNR (Communication Network Riser)

One AGP (Accelerated Graphics Port) 8x slot

Two PCI 2.2 32-bit Master PCI Bus slots



I/O Interface

PS/2 Mini-DIN mouse amp; keyboard ports

Six USB ports (four backpanel ports, onboard USB headers providing two extra ports)

One 25-pin female printer port

One serial port

One VGA port

Audio I/O: LINE-Outx1 , LINE-Inx1, MIC JACK x1



System BIOS

2MB Flash Rom on board, provides complete Advances Configuration Power Interface (ACPI) and Legacy PMU

Fully compliant to PC'97 and PC'98 Spec



Form Factor

Four layers, 23.0 cm x 20.0 cm

Flex ATX form factor

+I/O shield krytka
