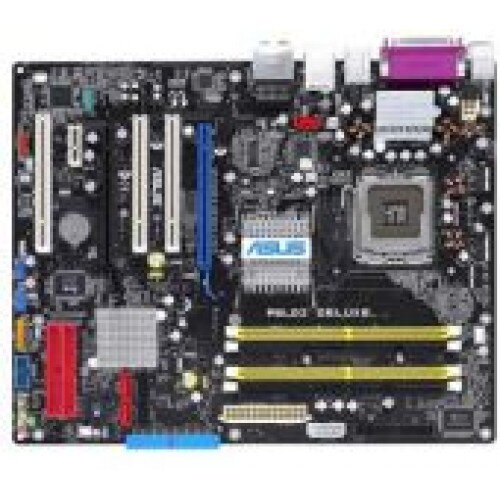

ASUS P5LD2 Deluxe

Specifications
CPU
Socket 775 for Intel Pentium D / Pentium 4 / Celeron

Intel® EM64T / EIST

Intel® Hyper-Threading Technology ready

New power design supports Intel® next generation 04B/04A amp; 05B/05A CPU
Chipset
Intel 945P

ICH7R
Front Side Bus
1066/800/533 MHz
Memory
4 x DIMM, max. 4GB, DDR2 667/533/400, non-ECC, un-buffered memory

Dual Channel Architecture

* Due to general PC architecture, a small amount of memory is reserved for system usage and thus the actual memory size is less than the stated amount.
Expansion Slots
2 x PCI-E x16

- Default (single VGA): x16, Auto Select

1 x PCI-E x1

3 x PCI

PCI 2.2,
Storage/RAID
Intel ICH7R South Bridge:

1 x UltraDMA 100/66/33

4 x Serial ATA (3Gb/s)

RAID 0, RAID 1, RAID 5, RAID 10 and Intel Matrix Storage technology.

ITE 8211F controller:

2 x UltraDMA 133/100/66 support two hard drives

Silicon Image 3132 Controller:

1 x Internal Serial ATA (3Gb/s

1 x External Serial ATA (3Gb/s)

RAID 0, RAID 1, JBOD, RAID 0, 1, 10, 5 with Additional Port Multiplier
Audio
Realtek ALC882M, 8-ch High-Definition Audio CODEC

Dolby® Master Studio

Jack Sensing and Enumeration

Universal Audio Jack

S/PDIF out interface
LAN
Marvell 88E8053 PCI-E Gb LAN controller
IEEE 1394
TI 1394 controller with 2 1394a ports
USB
8 USB2.0 ports
ASUS Unique Features
WiFi-TV (optional)

-Digital TV(DVB-T only), Analog TV, FM

-WiFi@home 802.11a/b/g

ASUS AI Quiet

ASUS Stack Cool 2

"SATA on the Go" External SATA connector
Back Panel I/O Ports
1 x Parallel

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x Audio I/O

1 x External SATA

1 x RJ45

1 x S/PDIF Out (Coaxial+Optical)

4 x USB

1 x IEEE1394
Internal I/O Connectors
2 x USB connector supports additional 4 USB ports

CPU / Chassis *2 / Power FAN connectors

24-pin ATX Power connector

4-pin EZ Plug

8-pin EATX 12V Power connector

IDE LED connector, power LED connector

Chassis Intrusion

CD audio in

1 x IEEE1394 ports

GAME/MIDI connector

5 x SATA II ports

COM2 connector

Front panel audio connector
BIOS
8 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, Multi-language BIOS, ASUS EZ Flash, ASUS CrashFree BIOS 2
Manageability
WOL by PME,WOR by PME, Chassis Intrusion
Support Disc
Drivers

ASUS PC Probe II

AI Booster

Anti-Virus Software

InterVideo WinDVD Suite

ASUS LiveUpdate
Accessories
User's manual

UltraDMA cable

IDE cable

FDD cable

COM cable

2-port USB / Game module

I/O shield

SATA cable

GT Soft Bridge

1 port 1394 module
Form Factor
ATX, 12" x 9.6" (30.5cm x 24.5cm)
