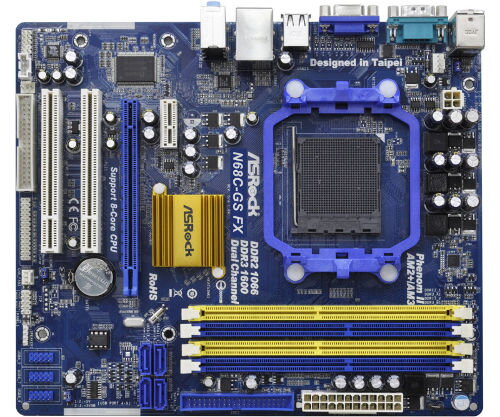

ASRock N68C-GS FX

Supports AM3+ Processor
Supports Dual Channel DDR3 1600 / DDR2 1066
Integrated NVIDIA® GeForce 7025 graphics, DX9.0 VGA, Pixel Shader 3.0
Gigabit LAN 10/100/1000 Mb/s
5.1 CH HD Audio (VIA® VT1705 Audio Codec)
Supports ASRock XFast RAM, XFast LAN, XFast USB Technologies
Supports ASRock Instant Boot, Instant Flash, OC DNA, APP Charger
Free Bundle : CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar

Product Specifications
General
CPU - Support up to 95W Socket AM3+ processors
- Support up to 95W Socket AM3 processors: AMD Phenom™ II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors
- Support up to 95W Socket AM2+ / AM2 processors: AMD Phenom™ FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processor
- Supports UCC feature (Unlock CPU Core)
- Supports AMD's Cool 'n' Quiet Technology
- FSB 1000 MHz (2.0 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport Technology

*For more information, please refer to the "CPU Support List".
Chipset - NVIDIA® GeForce 7025 / nForce 630a
Memory - Dual Channel DDR3/DDR2 memory technology*
- 2 x DDR3 DIMM slots
- Supports DDR3 1600/1333/1066/800 non-ECC, un-buffered memory
- Max. capacity of system memory: 8GB**
- 2 x DDR2 DIMM slots
- Supports DDR2 1066***/800/667/533 non-ECC, un-buffered memory
- Max. capacity of system memory: 8GB**

*The memory controller is integrated in the CPU.
AM2 and AM2+ CPUs can support only DDR2 memory.
AM3 CPUs can support DDR2 and DDR3 memory (not simultaneously).
AM3+ CPUs can support only DDR3 memory.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

***Support with AM3 / AM2+ CPU.
BIOS - 8Mb AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU, VCCM, NB Voltage Multi-adjustment
Audio, Video and Networking
Graphics - Integrated NVIDIA® GeForce 7025 graphics
- DX9.0 VGA, Pixel Shader 3.0
- Max. shared memory 256MB
- Supports D-Sub with max. resolution up to 1920x1440 @ 60Hz
Audio - 5.1 CH HD Audio (VIA® VT1705 Audio Codec)
LAN - Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Realtek RTL8211CL
- Supports Wake-On-LAN
- Supports PXE
Expansion / Connectivity
Slots - 1 x PCI Express x16 slot
- 1 x PCI Express x1 slot
- 2 x PCI slots
Connector - 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5 and JBOD), NCQ and Hot Plug functions
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x Print Port header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 3 x USB 2.0 headers (support 6 USB 2.0 ports)

*This mainboard does not support RAID with HDDs of 3TB and above.
Rear Panel I/O I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x VGA Port
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Unique Feature - ASRock OC Tuner
- ASRock Intelligent Energy Saver
- ASRock Instant Boot
- ASRock Instant Flash
- ASRock OC DNA
- ASRock APP Charger
- ASRock SmartView
- ASRock XFast USB
- ASRock XFast LAN
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5%
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar
Accessories - Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
Hardware Monitor - CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Form Factor - Micro ATX Form Factor
OS - Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant
Certifications - FCC, CE, WHQL
