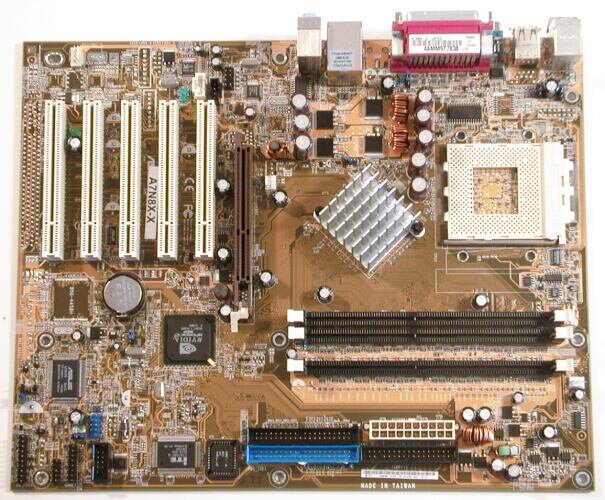

ASUS A7N8X-X mainboard

General

Chipset Type
NVIDIA nForce2 400
Compatible Processors
Athlon, Duron, Athlon XP
Max Bus Speed
400 MHz
Max Processors Qty
1
Manufacturer
Asus

Storage Controller

Interface Type
ATA-133

Expansion / Connectivity

Expansion Slots
1 x AGP 8x (1.5 V)
1 x CPU
3 x DIMM 184-pin
5 x PCI
Storage Interfaces
ATA-133 -connectors: 2 x 40pin IDC
Internal Interfaces
2 x audio - 4 pin MPC
1 x audio - 4 pin MPC
1 x floppy
Additional Connectors (Optional)
2 x USB 2.0

Processor

Max Supported Qty
1
Installed Qty
0

Audio

Audio Codec
Realtek ALC650

Miscellaneous

Package Type
bulk
Product Type
motherboard

Networking

Data Link Protocol
Ethernet, Fast Ethernet
Network Controller
Realtek RTL8201BL
Network
Ethernet

Processor / Memory / Storage

Max Supported Qty
1

Interface Provided

Qty
1, 4
Type
LAN, PS/2 keyboard, PS/2 mouse, USB 2.0, audio line-in, audio line-out, microphone, parallel, serial
Connector Type
mini-jack

Audio Output

Sound Output Mode
5.1 channel surround
Signal Processor
NVIDIA nForce2 MCP
Type
sound card
Audio Codec
Realtek ALC650
Audio
6-channel

Video

Video Output
none

RAM

Max Supported Size
3 GB

LAN

Network Interfaces
Ethernet
Network Controller
Realtek RTL8201BL

Supported RAM

Bus Clock
400 MHz, 333 MHz, 266 MHz, 200 MHz
Registered or Buffered
Unbuffered
Speed
PC3200, PC2700, PC2100, PC1600
Technology
DDR
Max Size
3 GB

Header

Brand
ASUS
Product Line
ASUS
Model
A7N8X-X
Packaged Quantity
1
Compatibility
PC

Mainboard

Form Factor
ATX
Compatible Processors
Athlon, Athlon XP, Duron
Data Bus Speed
400 MHz
Chipset Type
NVIDIA nForce2 400
Supported RAM Technology
DDR SDRAM
Supported RAM Speed
200 MHz, 266 MHz, 333 MHz, 400 MHz
Supported RAM Standard
PC1600, PC2100, PC2700, PC3200
Supported RAM (Registered or Buffered)
unbuffered

Mainboard Features

BIOS Type
Award
BIOS Features
ACPI support, DMI 2.0 support
Sleep / Wake Up
suspend to RAM (STR), wake on LAN (WOL), wake on ring (WOR)
Manual Settings
AGP slot voltage, CPU frequency, memory voltage, processor core voltage
Hardware Monitoring
CPU core temperature, CPU core voltage, CPU fan tachometer, CPU overheating protection, chassis fan tachometer, system voltage
Hardware Features
chassis intrusion detection

Interfaces

Storage
ATA-133

Expansion Slots

Total Qty
1, 3, 5
Voltage
1.5 V
Free Qty
1, 3, 5
Type
AGP 8x, CPU, DIMM 184-pin, PCI

Cable Details

Type
IDE cable, floppy cable

Slot Required

Type
none

Dimensions & Weight

Width
12 in
Depth
9.6 in

Storage Interfaces

Interface
ATA-133
Connector(s)
2 x 40pin IDC

Internal Interfaces

Type
audio, floppy
Connector Type
4 pin MPC
Qty
1, 2

Features

Manual Settings
CPU frequency, processor core voltage, memory voltage, AGP slot voltage
BIOS Type
Award
BIOS Features
ACPI support, DMI 2.0 support
Hardware Features
Chassis intrusion detection
Sleep / Wake Up
Suspend to RAM (STR), wake on LAN (WOL), wake on ring (WOR)
Hardware Monitoring
CPU core temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage
