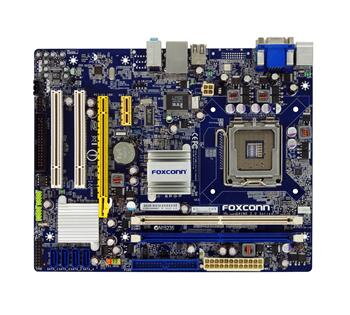

Foxconn G41MX 2.0 mainboard

Processor Intel® Core™2 Quad, Core™2 Duo, Pentium® Dual-Core, Pentium® 4 processors, Socket T (LGA775)
Supports Intel® 45nm Multi-Core processors
Chipset Intel® G41 + ICH7
Front Side Bus 1333/1066/800 MHz (FSB)
Memory Dual channel DDR2 800/667 x 2 DIMMs, Max 8GB
VGA on Die Integrated
Expansion Slots 1* PCIe x16, 1* PCIe x1, 2* PCI
IDE 1*ATA100
Serial ATA(SATA)/RAID 4* SATAII
Audio 5.1 channel by Realtek® ALC662
LAN 10/100M LAN by Realtek
IEEE1394 N/A
Back Panel I/O Ports 1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x VGA port
1 x Serial port
1 x Audio jack supports 3 jacks
4 x USB 2.0 ports
1 x RJ45 LAN port
Internal I/O Connectors 1 x ATX 24-Pin power connector
1 x 4-pin ATX 12V power connector
2 x 4-pin CPU / System FAN connectors
1 x CD-in connector
1 x IDE connector
1 x Floppy connector
1 x Front Panel connector
2 x USB 2.0 connectors support additional 4 ports
4 x Serial ATAII connectors
1 x S/PDIF Out header
1 x Speaker header
1 x Front Audio header
1 x IrDA header
1 x TPM header
BIOS Features 8Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI
Standards/Manageability PCI 2.3, USB2.0, DMI 2.5
Special Features
Form Factor Micro ATX (9.6"x7.7")
