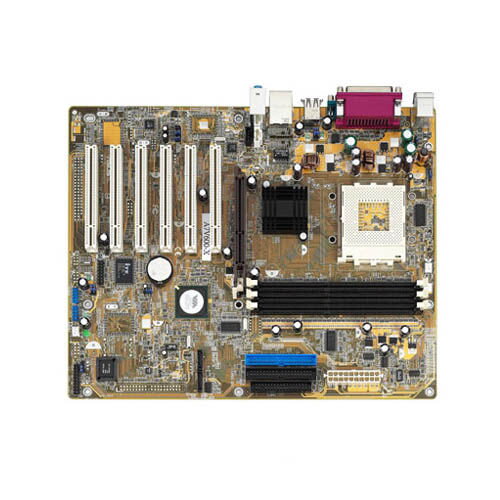

ASUS A7V600-X mainboard

General

Overclocking
This board features advanced manual options that aid in overclocking and performance-tuning efforts.
Chipset Type
VIA Apollo KT600
Compatible Processors
Athlon, Duron, Athlon XP
Processor Socket
Socket A
Max Bus Speed
400 MHz
Max Processors Qty
1
Manufacturer
Asus

Storage Controller

RAID Level
JBOD, RAID 0, RAID 1
Interface Type
Serial ATA-150

Expansion / Connectivity

Expansion Slots
1 x AGP 8x (1.5 V)
6 x PCI
1 x CPU
3 x DIMM 184-pin
Storage Interfaces
SATA-150 -connectors: 2 x 7pin Serial ATA
ATA-133 -connectors: 2 x 40pin IDC
Internal Interfaces
1 x floppy

Processor

Max Supported Qty
1
Installed Qty
0

Audio

Audio Codec
AD1888
Compliant Standards
AC '97

Processor / Memory / Storage

Max Supported Qty
1

Miscellaneous

Product Type
motherboard

Networking

Data Link Protocol
Ethernet, Fast Ethernet
Network
Ethernet

Interface Provided

Qty
1, 4
Type
LAN, PS/2 keyboard, PS/2 mouse, SPDIF out, USB 2.0, audio line-in, audio line-out, microphone, parallel, serial
Connector Type
mini-jack

RAM

Max Supported Size
3 GB

Audio Output

Sound Output Mode
5.1 channel surround
Compliant Standards
AC '97
Signal Processor
VIA VT8237
Type
sound card
Audio Codec
AD1888
Audio
6-channel

Video

Video Output
none

LAN

Network Interfaces
Ethernet

Storage Controller (2nd)

Controller Interface Type
ATA-133

Supported RAM

Bus Clock
400 MHz, 333 MHz, 266 MHz
Registered or Buffered
Unbuffered
Speed
PC3200, PC2700, PC2100
Technology
DDR
Max Size
3 GB

Header

Brand
ASUS
Product Line
ASUS
Model
A7V600-X
Packaged Quantity
1
Compatibility
PC

Mainboard

Form Factor
ATX
Processor Socket
Socket A
Compatible Processors
Athlon, Athlon XP, Duron
Data Bus Speed
400 MHz
Chipset Type
VIA Apollo KT600
Supported RAM Technology
DDR SDRAM
Supported RAM Speed
266 MHz, 333 MHz, 400 MHz
Supported RAM Standard
PC2100, PC2700, PC3200
Supported RAM (Registered or Buffered)
unbuffered

Mainboard Features

BIOS Type
Award
BIOS Features
ASUS EZ Flash, DMI 2.0 support, JumperFree, WfM 2.0 support
Sleep / Wake Up
RTC (real-time clock) wake up, wake on LAN (WOL), wake on ring (WOR)
Manual Settings
processor core voltage
Hardware Monitoring
CPU core temperature, CPU core voltage, CPU fan tachometer, CPU overheating protection, chassis fan tachometer, chassis temperature
Hardware Features
ASUS Instant Music Lite, C.P.R. (CPU Parameter Recall), CrashFree BIOS 2

Interfaces

Storage
ATA-133, Serial ATA-150 (RAID)

Expansion Slots

Total Qty
1, 3, 6
Voltage
1.5 V
Free Qty
1, 3, 6
Type
AGP 8x, CPU, DIMM 184-pin, PCI

Cable Details

Slot Required

Type
none

Dimensions & Weight

Width
12 in
Depth
9.6 in

Storage Interfaces

Interface
ATA-133, Serial ATA-150
Connector(s)
2 x 40pin IDC, 2 x 7pin Serial ATA

Internal Interfaces

Type
floppy
Qty
1

Features

Manual Settings
Processor core voltage
BIOS Type
Award
BIOS Features
DMI 2.0 support, WfM 2.0 support, JumperFree, ASUS EZ Flash
Hardware Features
ASUS Instant Music Lite, C.P.R. (CPU Parameter Recall), CrashFree BIOS 2
Sleep / Wake Up
RTC (real-time clock) wake up, wake on LAN (WOL), wake on ring (WOR)
Hardware Monitoring
CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, CPU overheating protection, CPU core voltage
