MSI 865PE Neo mainboard, Socket PGA478

Mainboard Specifications
CPU
! Supports Intel® P4 Northwood (Socket 478) processors.
! FSB 400MHz/533MHz/800MHz depending on the North Bridge integrated.
! Supports up to 3.06GHz or higher speed P4 processor.
Chipset
! Intel® 865PE chipset
- Supports 400/533/800MHz Intel NetBurst micro-architecture bus.
- Supports AGP 8X/4X at 0.8V (AGP 3.0) or 4X at 1.5V (not support 3.3V)
interface.
- Supports PC2100/PC2700 /PC3200 memory.
! Intel® ICH4 chipset
- 6 Hi-Speed USB ports (USB2.0/1.1) controller, 480Mb/sec.
- 2 channel Ultra ATA 100 bus Master IDE controller.
- SMBus 2.0 support.
- Integrated LAN controller.
- AC'97 2.2 interface.
Main Memory
! Supports two 64-bit wide DDR data channels.
! Available bandwidth up to 3.2 GB/s (DDR 400) for single-channel mode and
6.4 GB/s (DDR 400) for dual-channel mode.
! Supports two unbuffered DIMM of 2.5 Volt DDR SDRAM.
! Supports up to 2GB memory size without ECC.
! Supports only x8, x16 DDR devices with 4-bank.
Slots
! One AGP slot supports 8x/4x at 0.8V (AGP 3.0) or 4x at 1.5V (3.3V not
supported).
! Six 32-bit v2.3 Master PCI bus slots (support 3.3v/5v PCI bus interface).
On-Board IDE
! Dual Ultra DMA 66/100 IDE controllers integrated in ICH4.
- Supports PIO, Bus Master operation modes.
- Can connect up to four Ultra ATA drives.
1-3
On-Board Peripherals
! On-Board Peripherals include:
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and
2.88Mbytes
- 2 serial ports COM1 & COM2
- 1 VGA port (Optional)
- 1 parallel port supports SPP/EPP/ECP mode
- 6 USB 2.0 ports (Rear * 4/ Front * 2)
- 1 Line-In/Line-Out/Mic-In port
- 1 RJ45 LAN jack (Optional)
Audio
! AC'97 link controller integrated in ICH4
! 6 channels software audio codec C-Media 9739A.
- Compliance with AC97 v2.2 Spec.
- Meet PC2001 audio performance requirement.
- Can support SPDIF Out via S-Bracket only.
LAN (Optional)
! Realtek® 8101L.
- Integrated 10/100 Ethernet MAC and PHY in one chip.
- Supports 10Mb/s and 100Mb/s auto-negotiation operation.
- Compliant with PCI v2.2, mini PCi 1.0 and LAN on Motherboard (LOM)
standard.
BIOS
! The mainboard BIOS provides "Plug & Play" BIOS which detects the
peripheral devices and expansion cards of the board automatically.
! The mainboard provides a Desktop Management Interface (DMI) function
which records your mainboard specifications.
Dimension
! ATX Form Factor: 30.5 cm (L) x 20.0 cm (W).
Mounting
! 6 mounting holes.
1-4
MS-6742 ATX Mainboard

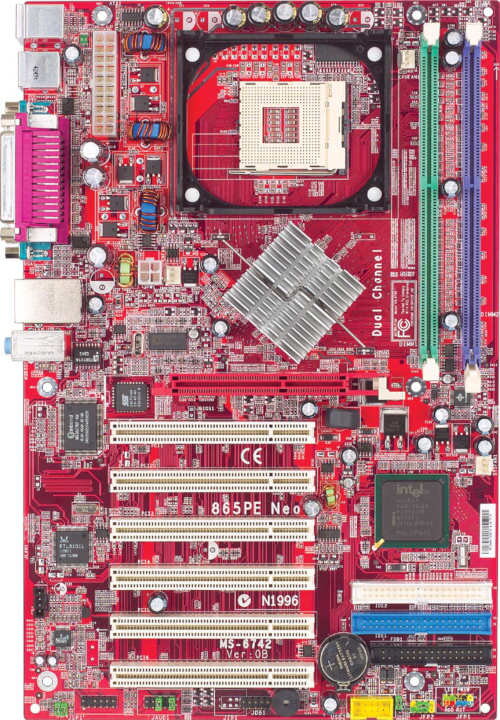

Mainboard Layout
865PE Neo
