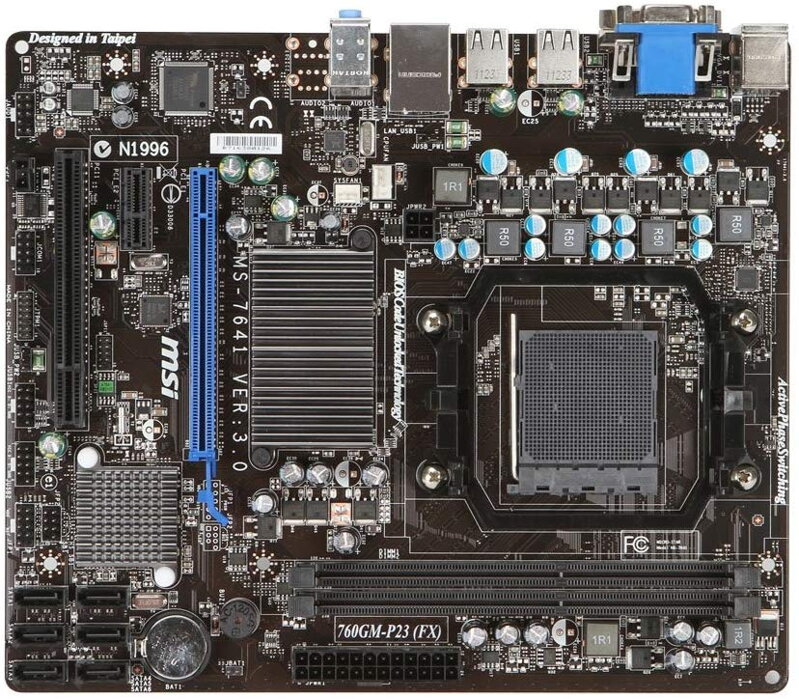

MSI 760GM-P23 (FX)

CPU

• 64bit AMD® FX, Phenom II X6/X4/X3/X2, Athlon II X4/X3/X2 and Sempron CPU in AM3 / AM3+ package.
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Hyper Transport Bus

• HyperTransport 3.0 supporting speed up to 5200MT/s

Chipset

• AMD® 760G and SB710 Chipset

Main Memory

• Supports two unbuffered DIMM of 1.5 Volt DDR3 800/1066/1333 DRAM, 16GB Max

Slots

• 1 PCI Express x16 slot with x16 operation (PCI Express Bus SPEC V2.0 compliant)
• 1 PCI EXpress x1 slot
• 1 PCI slot, support 3.3V/ 5V PCI bus Interface.

On-Board SATA

• 6 SATA 3Gb/s (1~6) ports by AMD® SB710
- Supports storage and data transfers at up to 3Gb/s

RAID Function

- SATA 1~6 support RAID 0, 1, 10 or JBOD mode by AMD® SB710

MSI Reminds You...
• The RAID setup floppy disk is optional depending on the districts. You can download the files from the website to make the setup disk.

Audio

• Chipset integrated by Realtek® ALC887
- Flexible 7.1-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec

LAN

• Realtek PCI-E GbLAN controller RTL8111E
- Supports 10Mb/s, 100Mb/s and 1000Mb/s
- Compliance with PCI-Express Bus specification v1.0a

Internal I/O Connectors

- 1 x ATX 24-pin power connector
- 1 x ATX 4-pin 12V CPU power connector
- CPU x 1 / System x 1 FAN connectors
- 1 x Front panel audio connector
- 1 x Front panel connector
- 1 x Chassis intrusion switch connector
- 2 x USB 2.0 connectors
- 6 x Serial ATA II connectors
- 1 x Serial port connector
- 1 x Clear CMOS jumper
- 1 x SPDIF-out connector
- 1 x TPM module connector

Back Panel I/O Ports

- 1 x PS/2 mouse port
- 1 x PS/2 keyboard port
- 6 x USB 2.0 ports
- 1 x Graphic Card port
- 1 x DVI-D port
- 1 x RJ45 LAN jack
- 1 x 3 in 1 audio jack

Dimension

• 24.4cm(L) x 20.5cm(W) Micro-ATX Form Factor

Mounting

• 6 mounting holes.
