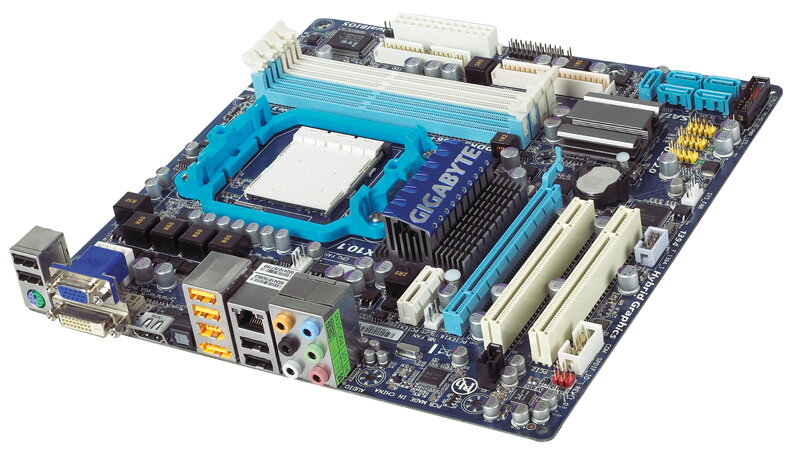

Gigabyte GA-MA785GMT-UD2H

Specifications:

CPU
Support for AM3 processors: AMD PhenomTM II processor/ AMD Athlon™ II processor
Hyper Transport Bus
5200 MT/s
Chipset
North Bridge: AMD 785G
South Bridge: AMD SB710
Memory
4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)
Dual channel memory architecture
Support for DDR3 1800 (OC)/1666/1333/1066 MHz memory modules
Onboard Graphics
Integrated in the North Bridge:
1 x D-Sub port
1 x DVI-D port (Note 2) (Note 3)
1 x HDMI port (Note 3)
Audio
Realtek ALC889A codec
High Definition Audio
2/4/5.1/7.1-channel
Support for Dolby Home Theater
Support for S/PDIF In/Out
Support for CD In
LAN
Realtek 8111C chip (10/100/1000 Mbit)
Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
(The PCI Express x16 slot conforms to PCI Express 2.0 standard.)
1 x PCI Express x1 slot
2 x PCI slots
Storage Interface
South Bridge:
1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
5 x SATA 3Gb/s connectors supporting up to 5 SATA 3Gb/s devices
1 x eSATA 3Gb/s port on the back panel supporting up to 1 SATA 3Gb/s device
Support for SATA RAID 0, RAID 1, RAID 10 and JBOD
iTE IT8718 chip:
1 x floppy disk drive connector supporting up to 1 floppy disk drive
USB
Integrated in the South Bridge
Up to 12 USB 2.0/1.1 ports (4 on the back panel, 8 via the USB brackets connected to the internal USB headers)
IEEE 1394
T.I. TSB43AB23 chip
Up to 2 IEEE 1394a ports (1 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
5 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x North Bridge fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF In/Out header
3 x USB 2.0/1.1 headers
1 x IEEE 1394a header
1 x parallel port header
1 x serial port header
1 x chassis intrusion header
1 x power LED header
1 x clearing CMOS jumper
Back Panel Connectors
1 x PS/2 keyboard port or PS/2 mouse port
1 x D-Sub port
1 x DVI-D port (Note 3)(Note 4)
1 x HDMI port (Note 4)
1 x optical S/PDIF Out connector
1 x eSATA 3Gb/s port
1 x IEEE 1394a port
6 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
I/O Controller
ITE IT8718 chip
H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU overheating warning
CPU/System/Power fan fail warning
CPU/System fan speed control (Note 4)
BIOS
2 x 8 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Unique Features
Support for @BIOS
Support for Q-Flash
Support for Xpress BIOS Rescue
Support for Download Center
Support for Xpress Install
Support for Xpress Recovery2
Support for EasyTune (Note 5)
Support for Easy Energy Saver
Support for Time Repare
Support for Q-Share
Bundled Software
Norton Internet Security (OEM version)
Operating System
Support for Microsoft Windows Vista/ XP
Form Factor
Micro ATX Form Factor; 24.3cm x 24.3cm

+I/O shield krytka
