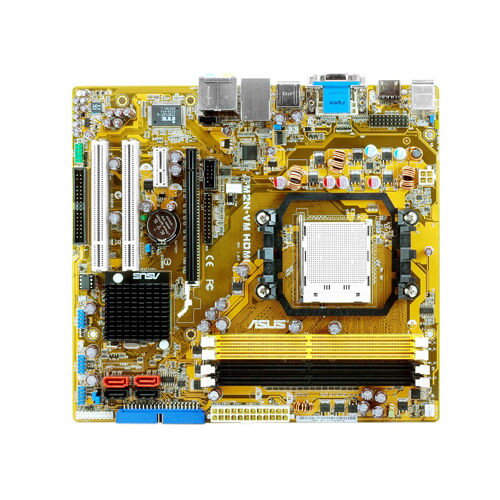

ASUS M2N-VM HDMI AM2, AM2+

- Supports Playback of HD DVD and Blu-ray Discs with HDCP compliant

- Support Dual-VGA output

- Support AMD Socket AM2+ CPU

- Integrated Geforce®7Series graphics

- PCI Express x16 architecture

- max. 8GB Dual channel DDR2 1066

- 4xSATA 300MB/s RAID 0,RAID 1, RAID10,RAID 5 and JBOD

- 8CH HD Audio
CPU
AMD Socket AM2+ / AM2 Processors

for Athlon64 / Athlon64 FX / Athlon64 X2 / Sempron/AM2+

AMD Cool 'n' Quiet⢠Technology

AMD64 architecture enables simultaneous 32-bit and 64-bit computing
Chipset
NVIDIA GeForce 7050PV/nForce 630a
System Bus
2000/1600 MT/s
Memory
4 x240-pin DIMM, Max. 8 GB, DDR2 1066/800/667/533 ECC,Non-ECC,Un-buffered Memory

Dual Channel memory architecture

*DDR2 1066 is supported by AM2+ CPU only
Expansion Slots
1 x PCIe 2.0 x16

1 x PCIe x1

2 x PCI
VGA
Integrated Nvidia® Geforce®7Series Shader model3.0 DirectX 9 graphics processor

Maximum shared memory of 256 MB

Supports RGB with max. resolution 1920 x1440 (@70Mhz*32bpp/75Mhz*16bpp)

Supports DVI-D with max. resolution 1920 x1200 (@60Mhz)

Supports HDMI⢠Technology with HDCP compliant with max. resolution 1920 x 1080p*

*Due to the chipset limitation, only MPEG 2 amp; WMV Offload can support HD format 1920 x 1080p.

*When playing HD DVD and Blu-ray disc the suggested system configuration above: DDR2 800 1GB*2 /Althon 64 X2 4400+/Graphic shared memory 256MB/Purevideo HD support.

Dual VGA output support: RGB amp; DVI / RGB amp; HDMI

* Due to the chipset limitation, simultaneous output for DVI and HDMI is not supported.
Storage
Southbridge

1 xUltraDMA 133/100

4 xSATA 3 Gb/s ports Support RAID 0,1,5,10,JBOD
LAN
Phy Gigabit LAN
Audio
ALC883 High Definition 8 -Channel CODEC

Supports Anti Pop Funtion and Vista Premium

Supports S/PDIF out interface, Jack-detect and multi-streaming
USB
10 USB 2.0 ports (4 on back I/O, 6 on board)
Overclocking Features
SFS (Stepless Frequency Selection) from 200MHz to 300MHz at 1MHz increment

Adjustable CPU Voltage at 0.025V increment

ASUS C.P.R.(CPU Parameter Recall)
Back Panel I/O Ports
1 x PS/2 Mouse

1 x PS/2 Keyboard

1 x HDMI

1 x DVI

1 x VGA

1 x RJ45

4 x USB 2.0/1.1

8-channel Audio I/O
Internal I/O Connectors
3 x USB 2.0 connector supports additional 6 USB 2.0 ports

High Definition Front panel audio connector

1 x CD audio-in connector

1 x S/PDIF output connector

1 x Floppy disk drive connector

1 x IDE connector for two devices

1 x LPT connector

1 x COM connector

CPU / Chassis Fan connectors

Chassis Intrusion connector

24-pin EATX power connector

4-pin ATX 12V Power connector

1 x System Panel connector
BIOS
8 Mb Flash ROM

AMI BIOS, PnP, DMI2.0, WfM2.0, SMBIOS 2.5
Manageability
WfM 2.0, DMI 2.0, WOR by Ring, PME Wake Up
O/S Compatibility
Windows Vista

Windows XP

Windows 2000
Accessories
User's manual

2 x Serial ATA cable

2 x SATA power cable

1 x UltraDMA 133/100 cable

1 x FDD cable

1 x I/O Shield
Support Disc
Drivers

ASUS PC Probe II

ASUS LiveUpdate Utility

Anti -virus software(OEM version)
Form Factor
uATX Form Factor

9.6" x 8.6" ( 24.4 cm x 22.4 cm )
