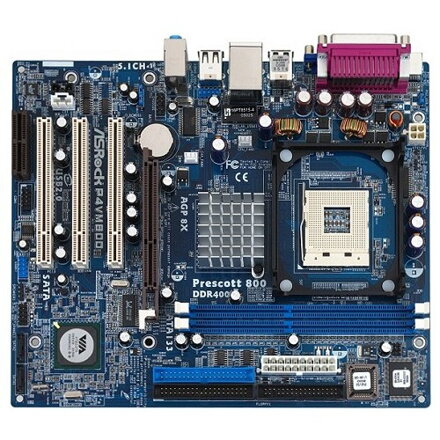

ASRock P4VM800 478 VIA P4M800 Micro ATX

CPU
- Socket 478 for Intel® Pentium® 4 / Celeron® processor
- FSB 800/533/400 MHz
- Supports Hyper-Threading Technology
- Prescott support
Chipset
- Northbridge: VIA® P4M800
- Southbridge: VIA® 8237R
Memory
- Supports DDR400/333 non-ECC, un-buffered memory
- DIMM slots: 2
- Max. capacity of system memory: 2GB
BIOS
- 4Mb AMI BIOS with ACPI, SM BIOS 3.0, PnP
Graphics
- Integrated UniChrome Pro 3D Graphics
- Shared Memory Max. 64MB (with the pre-condition of at least 256MB system memory)
Audio
- CMedia CMI9761 6 channel AC'97 audio codec
LAN
- VIA® 6103 10/100 Ethernet LAN PHY
- 802.3u, WOL supported
- Supports PXE
Slots
- 1 x AGP8X/4X slot, 1.5V
- 3 x PCI slots( PCI 2.2 compliance)
- 1 x AMR slot
Connector
- 2 x SeialATA 1.5Gb/s connectors supports RAID,0,1,JBOD, SATA HDD_Hotplug
- 2 x ATA 133/100/66 IDE connectors (supports 4 x IDE devices)
- 1 x Floppy connector
- CPU/Chassis FAN connectors
- 20 pin ATX power connector
- 4 pin 12V power connector
- IDE LED connector
- CD/AUX audio in header
- Front panel audio connector
- 1 x USB 2.0 port pin header
- 1 x COM port pin header
Rear Panel I/O
ASRock I/O Plus
- 6 x USB2.0 ports
- 1 x RJ45 LAN port
- 1 x VGA port
- 1 x PS2 Keyboard connector
- 1 x PS2 Mouse connectors
- 1 x Parallel port (LPT1)
- 1 x Audio ports ( Line In/Out, Mic In)
Unique Feature
Hybrid Booster:
- CPU Frequency Stepless control
- ASRock U-COP
- Boot Failure Guard (B.F.G)
Accessories:
- 1 x COM Port Bracket
Form Factor
- Micro ATX, 244mm x 203mm
OS
- Microsoft® Windows® 98SE/ME/2000/XP compliant
Certifications
- FCC, CE
