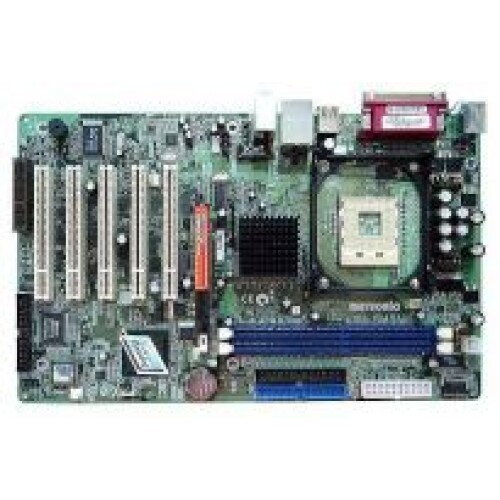

MS9077C+
Intel 845PE chipset
Socket 478 Processor Based ATX Motherboard With Audio/Lan/USB 2.0 On Board
SPECIFICATION
Processor
Support Socket 478 for Intel(R) Pentium(R) 4 1.5GHz~3.06GHz or faster Processor
Support Intel(R) Hyper-Threading Technology CPU
400/533/800(OC)MHz system interface speed
Chipset
Intel 845PE (MCH) and 82801DB (ICH4) chipsets
266 MB/s point to point Hub Interface to The Intel ICH4
Memory
Supports two 184-pin DDR DIMM maximum size up to 2GB
Support DIMMs of DDR200/DDR266/DDR333
Graphics Adapter Slot
Supports AGP 2.0 Including 1X/2X/4X AGP Data Transfers.
AGP 1.5V Connector Support Only.
Embedded USB2.0
480 Mbps data capacity
Backwards compatible with USB 1.1
Compliant with Intel!|s Enhanced Host Controller Interface
Specification Revision 0.95
Embedded LAN on board
10/100Mbps Fast Ethernet LAN on board
Supports IEEE 802.3 and 802.3u standards
Fully compliant ANSI X3.263 TP-PMD physical sub-layer
Audio
AC97 Codec on board to provide software audio solution
6CH DAC, applicable for leading motherboard chipsets
48 LQFP package(pin to pin compatible with 2-channel CODEC) and 24-lead TSSOP package
Two Ultra DMA IDE Ports
Supports two IDE ports up to 4 ATAPI devices
Supports up to PIO Mode 4 up to 16.6MBps, Multi Mode 4 up to 100MBps with bus mastering
Bus Architecture
One CNR slot for Soft audio modem riser only
Five 32-bit PCI slots with full master sharing controller (Rev 2.2 compliant)
One AGP4x slot
I/O Interface
PS/2 Mini-DIN keyboard and mouse ports
Six USB ports (four backpanel ports, onboard USB headers providing two extra ports)
One D-SUB 9-pin male serial ports
One D-SUB 25-pin female Printer port
Audio Line-out, Line-in and Mic-in jacks
System BIOS
2MB Flash Rom on board, provides complete Advances Configuration Power
Interface (ACPI) and Legacy PMU
Fully compliant to PC'97 and PC'98 Spec
Form Factor
304mm x 200mm, 4 Layers
ATX form factor
+I/O shield krytka
