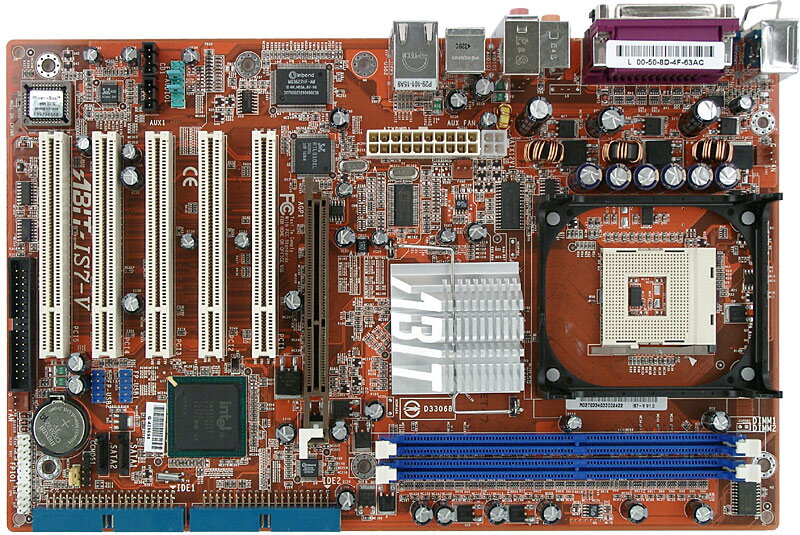

ABIT IS7-V

Product Description ABIT IS7-V - motherboard - ATX - i848P
Product Type Motherboard
Form Factor ATX
Chipset Type Intel 848P
Max Bus Speed 800 MHz
Processor 0 ( 1 ) - Socket 478
Compatible Processors Celeron, Pentium 4
RAM 0 MB (installed) / 2 GB (max)
Supported RAM Technology DDR SDRAM
Storage Controller ATA-100, Serial ATA-150
Storage Ports Configuration 2 x ATA, 2 x SATA
Audio Output Sound card - 6.1 channel surround
Networking Network adapter - Ethernet, Fast Ethernet
GENERAL
Product Type Motherboard
Form Factor ATX
Compatible Processors Celeron, Pentium 4
Processor Socket Socket 478
Chipset Type Intel 848P
Max Bus Speed 800 MHz
Storage Controller ATA-100, Serial ATA-150
PROCESSOR
Installed Qty (Max Supported) 0 ( 1 )
MEMORY
Supported RAM Technology DDR SDRAM
RAM Installed ( Max ) 0 MB / 2 GB (max)
Supported RAM Speed PC2700, PC3200
AUDIO
Audio Output Sound card
Sound Output Mode 6.1 channel surround
Compliant Standards AC '97
TELECOM / NETWORKING
Networking Network adapter - Ethernet, Fast Ethernet
FEATURES
BIOS Features ACPI support
Hardware Monitoring CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage
EXPANSION / CONNECTIVITY
Expansion Slot(s) 1 ( 1 ) x AGP 8x ( 1.5 V )
5 ( 5 ) x PCI
1 ( 1 ) x processor - Socket 478
2 ( 2 ) x memory - DIMM 184-PIN
Storage Interfaces ATA-100 - connector(s): 2 x 40pin IDC
Serial ATA-150 - connector(s): 2 x 7pin Serial ATA
Interfaces 1 x storage - floppy interface - 34 PIN IDC
1 x keyboard - generic - 6 pin mini-DIN (PS/2 style)
1 x mouse - generic - 6 pin mini-DIN (PS/2 style)
1 x serial - RS-232 - 9 pin D-Sub (DB-9)
1 x parallel - IEEE 1284 (EPP/ECP) - 25 pin D-Sub (DB-25)
Hi-Speed USB - 4 PIN USB Type A
2 x audio - line-In - 4 PIN MPC
1 x audio - line-out - mini-phone stereo 3.5 mm
1 x audio - line-In - mini-phone stereo 3.5 mm
1 x audio - line-out (centre/subwoofer) - mini-phone stereo 3.5 mm
1 x audio - line-out (rear) - mini-phone stereo 3.5 mm
Audio - SPDIF
1 x microphone - input - mini-phone 3.5mm

+I/O shield krytka
