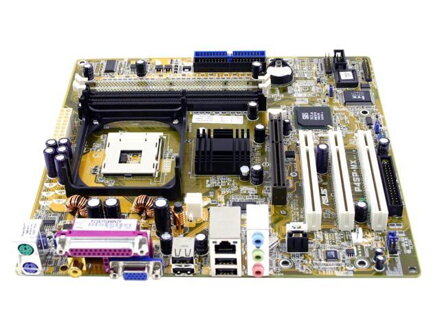

ASUS P4SP-MX mainboard, Socket PGA478

Chipset Type
SiS651
Compatible Processors
Celeron, Pentium 4
Processor Socket
Socket 478
Max Bus Speed
533 MHz
Max Processors Qty
1
Manufacturer
Asus

Processor

Max Supported Qty
1
Installed Qty
0

Storage Controller

Interface Type
ATA-133

Expansion / Connectivity

Expansion Slots
1 x AGP 4x (1.5 V)
3 x PCI
2 x memory - DIMM 168-pin
2 x DIMM 184-pin
1 x CPU, 2 x DIMM 184-pin
1 x AGP 4x (1.5 V)
3 x PCI
1 x shared PCI / CNR
Storage Interfaces
ATA-133 -connectors: 2 x 40pin IDC
Internal Interfaces
1 x floppy
2 x audio - 4 pin MPC, 1 x floppy
Additional Connectors (Optional)
2 x USB

Audio

Audio Codec
AD1980, AD1888
Compliant Standards
SoundMAX

Memory

Memory Allocation Technology
shared video memory (UMA)

Processor / Memory / Storage

Max Supported Qty
1

Miscellaneous

Product Type
motherboard

Interface Provided

Qty
1, 2, 4
Type
PS/2 keyboard, LAN, PS/2 mouse, SPDIF out, USB 2.0, VGA, parallel, audio line-out, serial, audio line-out (center/subwoofer)/line-in, audio line-out (rear)/microphone
Connector Type
mini-jack

Networking

Data Link Protocol
Ethernet, Fast Ethernet
Network
Ethernet

Cache Memory

Type
none

RAM

Max Supported Size
2 GB

Audio Output

Sound Output Mode
5.1 channel surround
Compliant Standards
SoundMAX
Signal Processor
SiS962L
Type
sound card
Audio Codec
AD1888, AD1980
Audio
6-channel

Video

Video Output
graphics adapter
Graphics Processor
SiS Real256

Graphics

Graphics Controller
SiS Real256
Memory Allocation Technology
Shared video memory (UMA)

LAN

Network Interfaces
Ethernet

Supported RAM

Bus Clock
333 MHz, 266 MHz, 200 MHz
Speed
PC2700, PC2100, PC1600, PC2700, PC2100, PC1600, PC133, PC100
Technology
DDR, SDRAM, DDR
Max Size
2 GB

Header

Brand
ASUS
Product Line
ASUS
Model
P4SP-MX, P4S533-MX
Packaged Quantity
1
Compatibility
PC

Mainboard

Form Factor
micro ATX
Processor Socket
Socket 478
Compatible Processors
Celeron, Pentium 4
Data Bus Speed
533 MHz
Chipset Type
SiS651
Supported RAM Technology
DDR SDRAM, SDRAM
Supported RAM Speed
100 MHz, 200 MHz, 266 MHz, 133 MHz, 333 MHz
Supported RAM Standard
PC100, PC1600, PC2100, PC133, PC2700

Mainboard Features

BIOS Type
Award
BIOS Features
ACPI 1.0b support, ASUS EZ Flash, DMI 2.0 support, APM 1.2 support, WfM 2.0 support
Sleep / Wake Up
wake on LAN (WOL), wake on modem (WOM), wake on ring (WOR)
Manual Settings
CPU frequency
Hardware Monitoring
CPU core temperature, CPU core voltage, CPU fan tachometer
Hardware Features
CrashFree BIOS, C.P.R. (CPU Parameter Recall)

Interfaces

Storage
ATA-133

Expansion Slots

Total Qty
1, 2, 3
Form Factor
DIMM 168-pin
Voltage
1.5 V
Free Qty
1, 2, 3
Type
DIMM 184-pin, CPU, PCI

Software

Software Included
ASUS Live Update, ASUS EZ Flash, ASUS PC Probe, PC-cillin 2002, drivers & utilities, Adobe Acrobat Reader

Dimensions & Weight

Width
9.6 in
Depth
9.6 in

Video Memory

Memory Allocation Technology
shared video memory (UMA)

Slot Required

Type
none

Storage Interfaces

Interface
ATA-133
Connector(s)
2 x 40pin IDC

Internal Interfaces

Type
floppy, audio
Connector Type
4 pin MPC
Qty
1, 2

Features

Manual Settings
CPU frequency
BIOS Type
Award
Hardware Features
CrashFree BIOS, CrashFree BIOS, C.P.R. (CPU Parameter Recall)
BIOS Features
APM 1.2 support, DMI 2.0 support, WfM 2.0 support, ACPI 1.0b support, DMI 2.0 support, WfM 2.0 support, ASUS EZ Flash
Sleep / Wake Up
Wake on modem (WOM), wake on LAN (WOL), wake on ring (WOR), Wake on LAN (WOL), wake on ring (WOR)
Hardware Monitoring
CPU core temperature, CPU fan tachometer, CPU core voltage

General

Manufacturer
Asus
