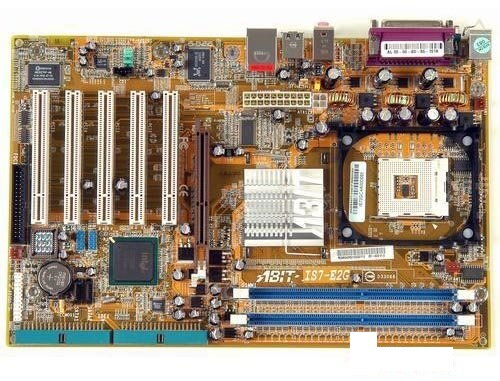

Abit IS7-E2G

SPECS
GENERAL
Chipset TypeIntel 865PE / Intel ICH5
Compatible ProcessorsPentium 4
Processor SocketSocket 478
Max Bus Speed800 MHz
Max Processors Qty1
ManufacturerABIT Computer Corp.
STORAGE CONTROLLER
Interface TypeSerial ATA-150
EXPANSION / CONNECTIVITY
Expansion Slots1 x CPU
2 x DIMM 184-pin
1 x AGP 8x (1.5 V/ 0.8 V)
5 x PCI
Storage InterfacesATA-100 -connectors: 2 x 40pin IDC
SATA-150 -connectors: 2 x 7pin Serial ATA
Internal Interfaces1 x floppy
1 x audio - 4 pin MPC
PROCESSOR
Max Supported Qty1
Installed Qty0
INTERFACE PROVIDED
Qty1, 4
TypeLAN (Gigabit Ethernet), PS/2 keyboard, PS/2 mouse, USB 2.0, audio line-in, audio line-out, microphone, parallel, serial
Connector Typemini-jack
NETWORKING
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
NetworkGigabit Ethernet
PROCESSOR / MEMORY / STORAGE
Max Supported Qty1
CACHE MEMORY
Typenone
MISCELLANEOUS
Product Typemotherboard
AUDIO
Audio CodecRealtek ALC658
Compliant StandardsAC '97
VIDEO
Video Outputnone
AUDIO OUTPUT
Sound Output Mode5.1 channel surround
Compliant StandardsAC '97
Signal ProcessorIntel 865PE
Typesound card
Audio CodecRealtek ALC658
Audio6-channel
RAM
Max Supported Size2 GB
Featuresdual channel memory architecture
LAN
Network InterfacesGigabit Ethernet
STORAGE CONTROLLER (2ND)
Controller Interface TypeATA-100
SUPPORTED RAM
Bus Clock400 MHz
FeaturesDual channel memory architecture
SpeedPC3200
TechnologyDDR
Max Size2 GB
HEADER
BrandABIT
Product LineABIT
ModelIS7-E2G
Packaged Quantity1
CompatibilityPC
MAINBOARD
Form FactorATX
Processor SocketSocket 478
Compatible ProcessorsPentium 4
Data Bus Speed800 MHz
Chipset TypeIntel 865PE
I/O ControllerIntel ICH5
Supported RAM TechnologyDDR SDRAM
Supported RAM Speed400 MHz
Supported RAM StandardPC3200
MAINBOARD FEATURES
BIOS TypeAward
BIOS FeaturesACPI support, Hyper-Threading Technology, SoftMenu
Hardware FeaturesABIT FanEQ
INTERFACES
StorageATA-100, Serial ATA-150
EXPANSION SLOTS
Total Qty1, 2, 5
Voltage1.5 V/ 0.8 V
TypeAGP 8x, CPU, DIMM 184-pin, PCI
DIMENSIONS & WEIGHT
Width12 in
Depth7.9 in
STORAGE INTERFACES
InterfaceATA-100, Serial ATA-150
Connector(s)2 x 40pin IDC, 2 x 7pin Serial ATA
INTERNAL INTERFACES
Typeaudio, floppy
Connector Type4 pin MPC
Qty1
FEATURES
BIOS TypeAward
Hardware FeaturesABIT FanEQ
BIOS FeaturesACPI support, Hyper-Threading Technology, SoftMenuGENERAL

+I/O shield krytka
