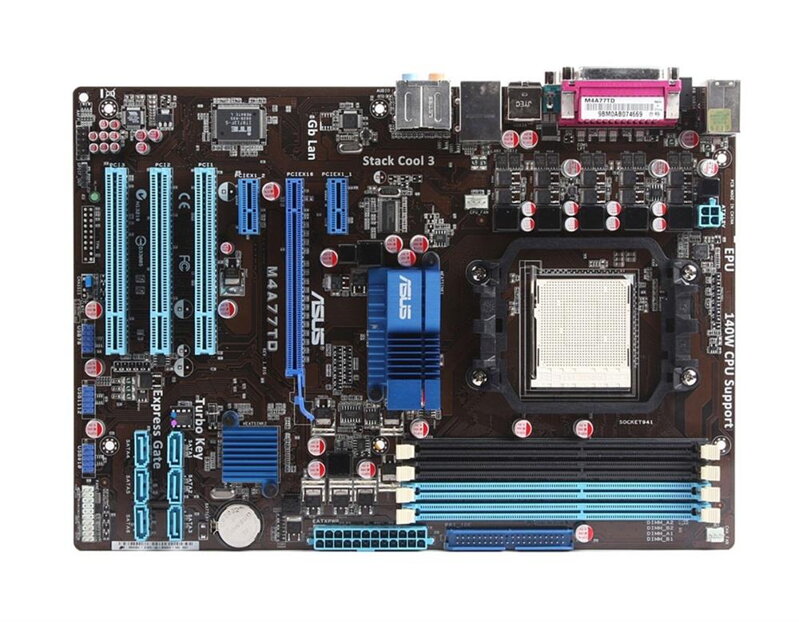

ASUS M4A77TD AM3+

SPECS
GENERAL
Chipset TypeAMD 770 / AMD SB710
Compatible ProcessorsPhenom II X3, Athlon II X2, Phenom II X2, Phenom II X4
Processor SocketSocket AM3
Max Bus Speed2600 MHz
Max Processors Qty1
ManufacturerAsus
EXPANSION / CONNECTIVITY
Expansion Slots1 x CPU
4 x DIMM 240-pin
1 x PCIe 2.0 x16
2 x PCIe x1
3 x PCI
Storage InterfacesAMD SB710: ATA-133 -connectors: 1 x 40pin IDC - 2 devices
AMD SB710: SATA-300 -connectors: 6 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 10 / JBOD
Additional Connectors (Optional)6 x USB 2.0
Power Connectors4-pin ATX12V connector, 24-pin main power connector
PROCESSOR
Max Supported Qty1
Installed Qty0
INTERFACE PROVIDED
Qty1, 6
TypeLAN (Gigabit Ethernet), PS/2 keyboard / mouse, TOSLINK, USB 2.0, audio line-in, audio line-out, audio line-out (center/subwoofer), audio line-out (rear), audio line-out (side surround), microphone, parallel, serial
Connector Typemini-jack
NETWORKING
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
NetworkGigabit Ethernet
PROCESSOR / MEMORY / STORAGE
Max Supported Qty1
MISCELLANEOUS
Microsoft CertificationsCompatible with Windows 7
Product Typemotherboard
Compatible with Windows 7"Compatible with Windows 7" software and devices carry Microsoft's assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
AUDIO
Audio CodecVIA VT1708S
Compliant StandardsHigh Definition Audio
VIDEO
Video Outputnone
AUDIO OUTPUT
Sound Output Mode7.1 channel surround
Compliant StandardsHigh Definition Audio
Typesound card
Audio CodecVIA VT1708S
AudioHigh Definition Audio (8-channel)
RAM
Max Supported Size16 GB
Featuresdual channel memory architecture
LAN
Network InterfacesGigabit Ethernet
SUPPORTED RAM
Bus Clock1066 MHz
Registered or BufferedUnbuffered
FeaturesDual channel memory architecture
SpeedPC3-8500
TechnologyDDR3
Max Size16 GB
Supported RAM Integrity CheckNon-ECC, ECC
HEADER
BrandASUS
Product LineASUS
ModelM4A77TD
Packaged Quantity1
CompatibilityPC
MAINBOARD
Form FactorATX
Processor SocketSocket AM3
Compatible ProcessorsAthlon II X2, Phenom II X2, Phenom II X3, Phenom II X4
Data Bus Speed2600 MHz
Chipset TypeAMD 770
I/O ControllerAMD SB710
Supported RAM TechnologyDDR3 SDRAM
Supported RAM Speed1066 MHz
Supported RAM StandardPC3-8500
Supported RAM Integrity CheckECC, non-ECC
Supported RAM (Registered or Buffered)unbuffered
RAM Slots4 DIMM slots
Power Connectors24-pin main power connector, 4-pin ATX12V connector
MAINBOARD FEATURES
BIOS TypeAMI
BIOS FeaturesACPI 2.0a support, ASUS EZ Flash 2, ASUS MyLogo2, DMI 2.0 support, SMBIOS 2.5 support, WfM 2.0 support
Manual SettingsCPU frequency, PCI Express x16 slot frequency
Hardware FeaturesAMD Cool 'n' Quiet Technology, ASUS AI NET2, ASUS EPU-4 Engine, ASUS Express Gate, ASUS Q-Fan, ASUS Stepless Frequency Selection (SFS), ASUS Turbo Key, C.P.R. (CPU Parameter Recall), CrashFree BIOS 3, Stack Cool 3, audio jack detect technology, jack retasking
INTERFACES
StorageATA-133, Serial ATA-300 (RAID)
EXPANSION SLOTS
Total Qty1, 2, 3, 4
TypeCPU, DIMM 240-pin, PCI, PCIe 2.0 x16, PCIe x1
DIMENSIONS & WEIGHT
Width12 in
Depth8.4 in
