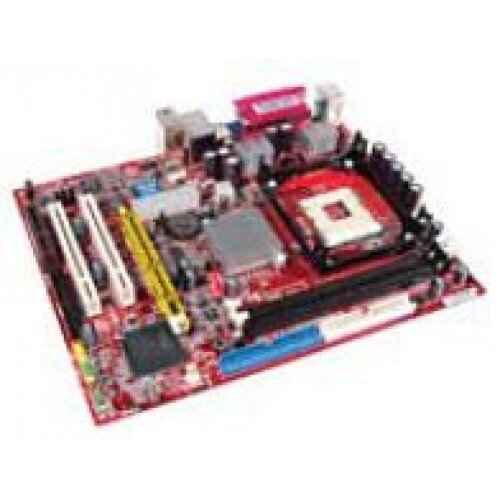

MSI 845GVM2-V MS-7120

CPU
⢠Supports Socket 478 for Intel® Pentium 4 (Willamette/Northwood/Celeron/Prescott (Celeron)) processor⢠Supports up to 3.06GHz⢠FSB 400/533MHzPlease refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset
⢠Intel® 845GV Chipset - Intel Extreme Graphics core - Integrated 2D/3D graphic controller - Support PC2100/PC2700 DDR technology - Supports FSB 400/533MHz
⢠Intel® ICH4 Chipset - AC'97 controller Integrated. - 6 USB 2.0/1.1 ports - 2 channel Ultra ATA/100 Bus Master IDE controller - SMBus 2.0 support - Integrated LAN controller

Main Memory
⢠Supports two 184-pin DDR200/DDR266/DDR333 DIMMs⢠Supports Max. memory size of 2GB without ECC function⢠Support 2.5V DDR DIMM

Slots
⢠One AGR (Advance Graphics Riser) slot for compatible AGP VGA cards.⢠Two PCI 2.2 32-bit Master bus slots (support 3.3V/5V)⢠One CNR (Communication Network Riser) slot
The AGR slot is a special design that only supports compatible AGP VGA cards. For more detailed information on compatible AGP VGA cards, please refer here

On-Board IDE
⢠An IDE controller integrated in ICH4⢠Support PIO, Bus Master and Ultra ATA66/100 operation modes⢠Can connect up to four IDE devices

Video
⢠Integrated Intel Extreme Graphics

Audio
⢠6 channels S/W audio codec Realtek ALC655- Compliance with AC97 v2.3 spec- Meet PC2001 audio performance requirement

Network
⢠PCI local bus single-chip Fast Ethernet Controller⢠RealTek RTL8101L with external Base-T lan transformer - Integrated Fast Ethernet MAC and PHY in one chip. - Supports 10Mb/s and 100Mb/s auto-negotiation operation. - Compliance with PCI v2.2. - Compliance with PC99 and PC2001 standard. - Supports ACPI power management.

Internal I/O Connectors
- ATX 20-Pin power connector- 4-pin ATX 12V power connector- CPU / System FAN connectors- CD-in connector- Clear CMOS jumper- Serial port connector (COM2)- Front USB 2.0 connector support additional 2 ports- Front panel audio connector- Front panel connector- 1 x Floppy disk drive connector- 2 x Ultra DMA 100 IDE device connectors

Back Panel I/O Ports
- 1 x Parallel- 1 x Serial port (COM 1)- 1 x VGA- 1 x PS/2 Keyboard- 1 x PS/2 Mouse- 1 x Audio I/O (Line-in/Line-out/MIC)- 4 x USB 2.0- 1 x RJ45 LAN Jack

BIOS
⢠ACPI, SMBIOS 2.3, Green and Boot Block.⢠Provides DMI 2.0, WFM 2.0, WOL and SMBus for system management.

Dimension
⢠24.4 cm(L) x 19 cm(W) Micro-ATX Form Factor
Mounting
⢠6 mounting holes.
