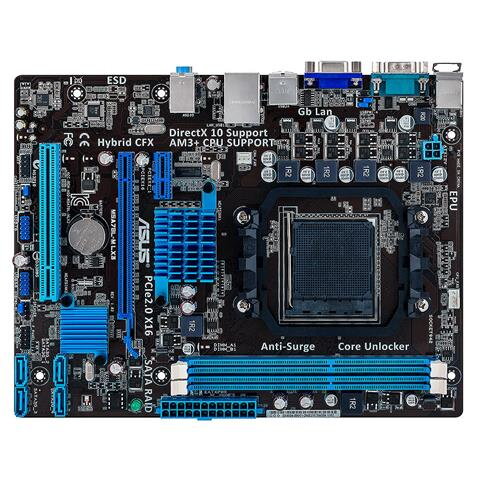

ASUS M5A78L-M LX3

CPU
AMD AM3+ FX™/Athlon™ II/Phenom™ II/Sempron™ 100 Series Processors
Supports CPU up to 95 W
AMD Cool ´n´ Quiet™ Technology
Chipset
AMD 760G (780L)/SB710
Memory
2 x DIMM, Max. 16GB, DDR3 1866/1600/1333/1066 MHz ECC, Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.
* AMD FX Series CPU on this motherboard supports up to DDR3 1866MHz as its standard memory frequency.
* Due to CPU spec., AMD AM3 CPUs on this motherboard support up to DDR3 1333MHz.
System Bus
Up to 5.2 GT/s HyperTransport™ 3
Graphic
Integrated ATI Radeon™ HD 3000 GPU
VGA output support : RGB port
- Supports RGB with max. resolution 2560 x 1440 @ 75 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
Hybrid CrossFireX™ Support *1
Supports DirectX 10
Expansion Slots
1 x PCIe 2.0 x16
1 x PCIe 2.0 x1
1 x PCI
Storage
AMD SB710 controller :
4 x SATA 3Gb/s port(s), blue,
Support Raid 0, 1, 10, JBOD
LAN
Qualcomm Atheros 8161/8171, 1 x Gigabit LAN Controller(s)
Audio
Realtek ALC887/897 8-Channel High Definition Audio CODEC *2
USB Ports
Built-in Controller :
8 x USB 2.0 port(s) (4 at back panel, black, 4 at mid-board)
Special Features
ASUS EPU :
- EPU
Core Unlocker
ASUS Exclusive Features :
- Anti-Surge
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x LAN (RJ45) port(s)
4 x USB 2.0
1 x COM port(s)
3 x Audio jack(s)
Internal I/O Ports
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
4 x SATA 3Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)
